Business Advantages:
1) Boadening customer base
2) High-quality images
3) Release content efficiently
4) Energy conservations
5) Environment protected
6) Update your Ad effectively
7) Impact force
8) Diversity
9) Wide angle of view
Product Description:

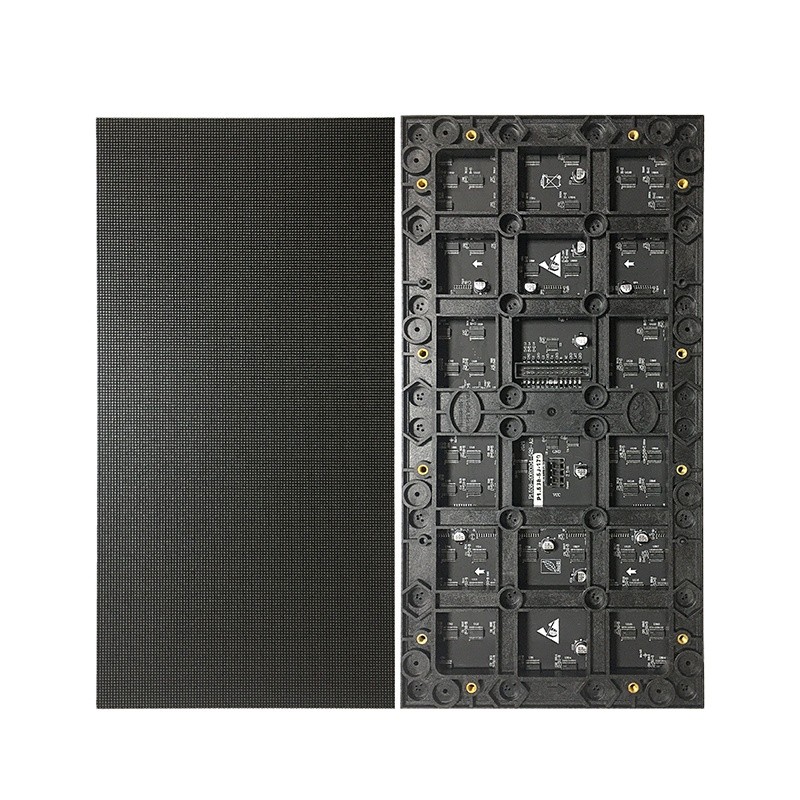

Module Parameters |
Technical parameters | UNIT | Parameters Values |
Pixel launch | MM | 1,538 |
Panel size | MM | L320 * H160 * T14 |
Physical density | Dot / M 2 | 422500 |
Pixel configuration | R / G / B | 1.1.1 |
Driving method |
| 1/52 Scan |
LED encapsulation | SMD | 1212 |
Display resolution | POINTS | 208 * 104 |
Weight module | KG | 0.498 |
Module Port |
| HUB75 |
Operating voltage module | VDC | 5 |
Consumption module | W | ≤ 28 |
Each square meter modulates | PCS | 16 |
M Maximum power | W / M 2 | <500 |
E Quilibrium brightness | CD / M 2 | ≥ 1000 |
Working environment temperature | 0 C | -10 ~ 60 |
Working environment Humidity | HR | 10% ~ 70% |
Operating voltage display | ACC | AC46 ~ 54HZ , 220V ± 15% / 110V ± 15% |
The best viewing distance |
| ≥ 4M |
Lamp Frequency failure |
| < 0.0001 |
IP Rating |
| T He back IP40, T He Before IP50 |
Control method |
| Synchronize Or Asynchronize Control |
