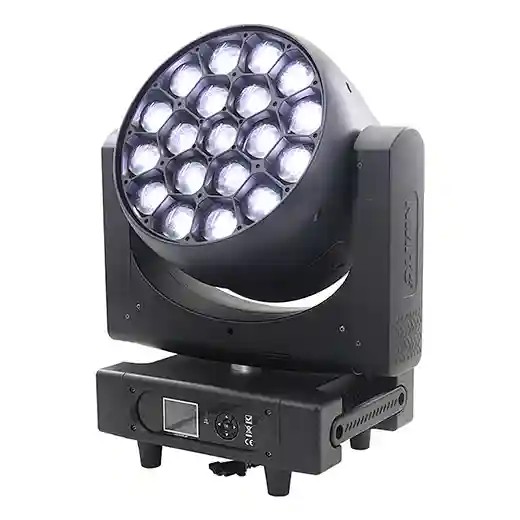

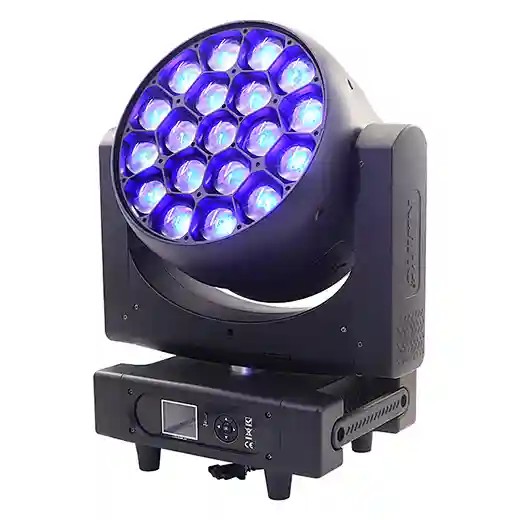

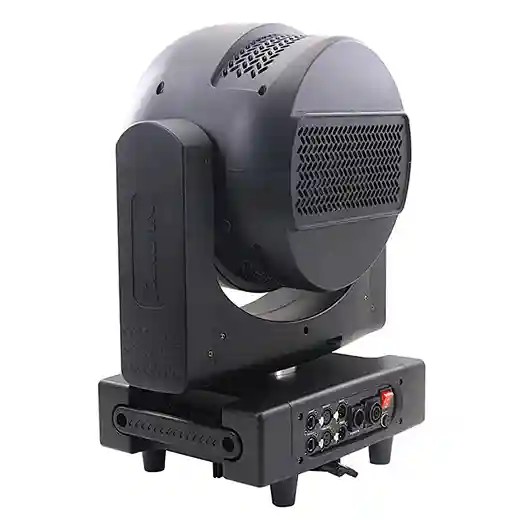

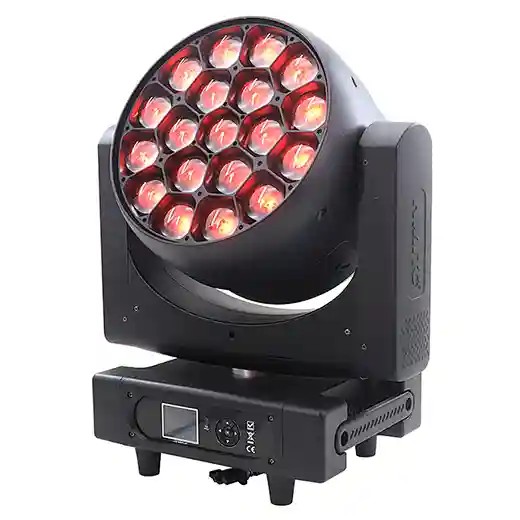

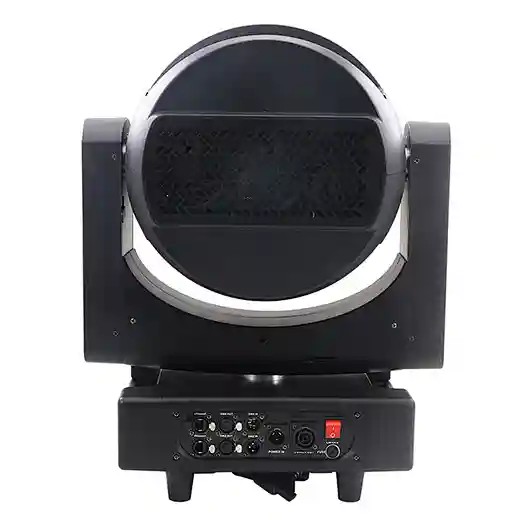

19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light

19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light: The new LEDwash benchmark
The BEE-EYE has revolutionized the way we think of the traditional LED stage show lighting. The innovative optical unit of 19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light enhances the uniformity and efficiency of the light output. The ability which can control each single LED individually and the rotating front lens have made spectacular kaleidoscopic projections and captivating eye-catching effects possible. The advanced effect engine has made it easier to routinely use macro effects, which would otherwise be difficult to program. These technological innovations make the BEE-EYE a multifunction product in one product: it is a high-performance LED wall washer, a perfect beam light and a projector for spectacular visual effects all in one.
19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light even offers more versatility and more interactivity with the media servers, it is very quiet.

FEATURES

• 19pcs x 40W RGBW LED, 850W, 6000K

• OSRAM 40W LED lamp beads RGBW 4 in 1

• White CT Emulation 2500-8000K

• Total output up to 50000 hours

• Built-in rich effect program

• 0-100% Linear Dimming Modes

• 2 color switching modes (RGBW/CMY)

• Versatile, 5 operating modes: wash, beam, FX (Kaleido effects), graphics, special effects

• 4-60°, 37500lux@5m ,minimum angle and even light spread

• Rotating front lens for countless vortex effects & small waist effect, for aerial or"kaleidoscopic"projection use

• Individual LED control for each parameter can be rotated in both directions at fast/slow speed

• Invisible front grid

• Beam edge softening control (in wash mode)

• Exclusive parallel beam consisting of an array of individually controllable micro-beams

• Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability

• Art-Net / RDM

• Arkaos Kling-Net protocol already included in the firmware

• RGB auto-tuning to lamp CT Emulation

• Tungsten Lamp Emulation

SPECIFICATIONS

MODEL NO.

BLM1940ZR

PHYSICAL

Length: 690 mm

Width: 560 mm

Height: 49 mm head straight up

Net Weight: 20 kg

Carton Packing (1 in 1):
Size: 69×56×49cm
Gross weight: 28kg
Flightcase Packing (2in1):
Size: 120×84×47cm
Gross weight: 96kg

DYNAMIC EFFECTS

5 operating modes: wash, beam, FX (Kaleido effects), graphics, special effects
Bi-directional Rotating Front Lens
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
Pixel Patterning Macros with enhanced control
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
White CT Emulation 2500-8000K
RGBW auto-tuning to lamp CT Emulation
Tungsten Lamp Emulation

Adjustable speed stop/strobe effect, with instantaneous blackout
Slow Strobe: 1 flash/sec

Fast Strobe: 25 flash/sec

0-100% Linear Dimming Modes
Zoom range: 4-60°, 37500lux@5m ,minimum angle

Electronic Zoom Range
Movement by means of two stepper motors, controlled by microprocessor
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
Pan: 540°
Tilt:  270°

LIGHT SOURCE

Maximum power：850W
Light Source : 19pcs RGBW LEDs driven at 40 Watt
Type: OSRAM OSTAR - Stage II LE RTDUW S2WN
Color Temperature: 6,000 K
Life: 50,000 hours

CONTROL AND PROGRAMMING

DMX protocol signal: USITT DMX 512

DMX channels: 22/36/79/98 CH
DMX signal interface: 3-pin network port input and output

Self-charging battery
Art-Net / RDM
Arkaos Kling-Net protocol already included in the firmware
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 3 and 5 pole XLR input & RJ45 and output
Software upload through DMX input

CONSTRUCTION

Color(s): Black
Boby: Aluminium structure with die-cast plastic cover
Two side handles for transportation
PAN and TILT lock for transport and maintenance
Housing: UV-resistant fiber-reinforced composite
Display: advanced & convenient full-color LCD touch button screen with RDM

ELECTRONICS

Long-life auto-charging buffer battery
Preset color and graphic effect macros
Function reset controllable from a central control unit
Menu-driven internal self-test function
Ethernet ready with RJ45 socket
Display: backlit black-and-white graphic LCD display
Electronic check-up of every single parameter with error alarm
DMX level monitoring on each channel
Automatic internal data transmission error diagnostics
Firmware upgrade even when the unit is not connected to the power supply
Firmware transfer from one light to another

SAFETY DEVICES

Automatic power safety derating in case of overheat of the LED board
Forced ventilation

WORKING POSITION

Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

INSTALLATION

Mounting points: Fold Clamp,2 pairs of 1/4-turn locks.

Orientation: Any

CONNECTIONS

AC power input: 1.5m integral cable without power plugDMX data in/out: 3-pin locking XLR

ELECTRICAL

AC power: 100-240 V, 50/60 Hz

Main fuse (100-120 V power):15 AT (slow blow)

Main fuse (208-240Vpower): 10 AT (slow blow)

TYPICAL POWER AND CURRENT

110 V, 60 Hz: 977 W, 9.0 A, PF 0.995

220 V, 60 Hz: 850 W, 3.9 A, PF 0.973

THERMAL

Cooling: Filtered forced air (temperature-regulated, low noise)

Maximum ambient temperature (Ta max.): 40° C

Maximum surface temperature, steady state, Ta=40° C: 160° C

Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 3340 / 3190 BTU/hr.
