Technical data |

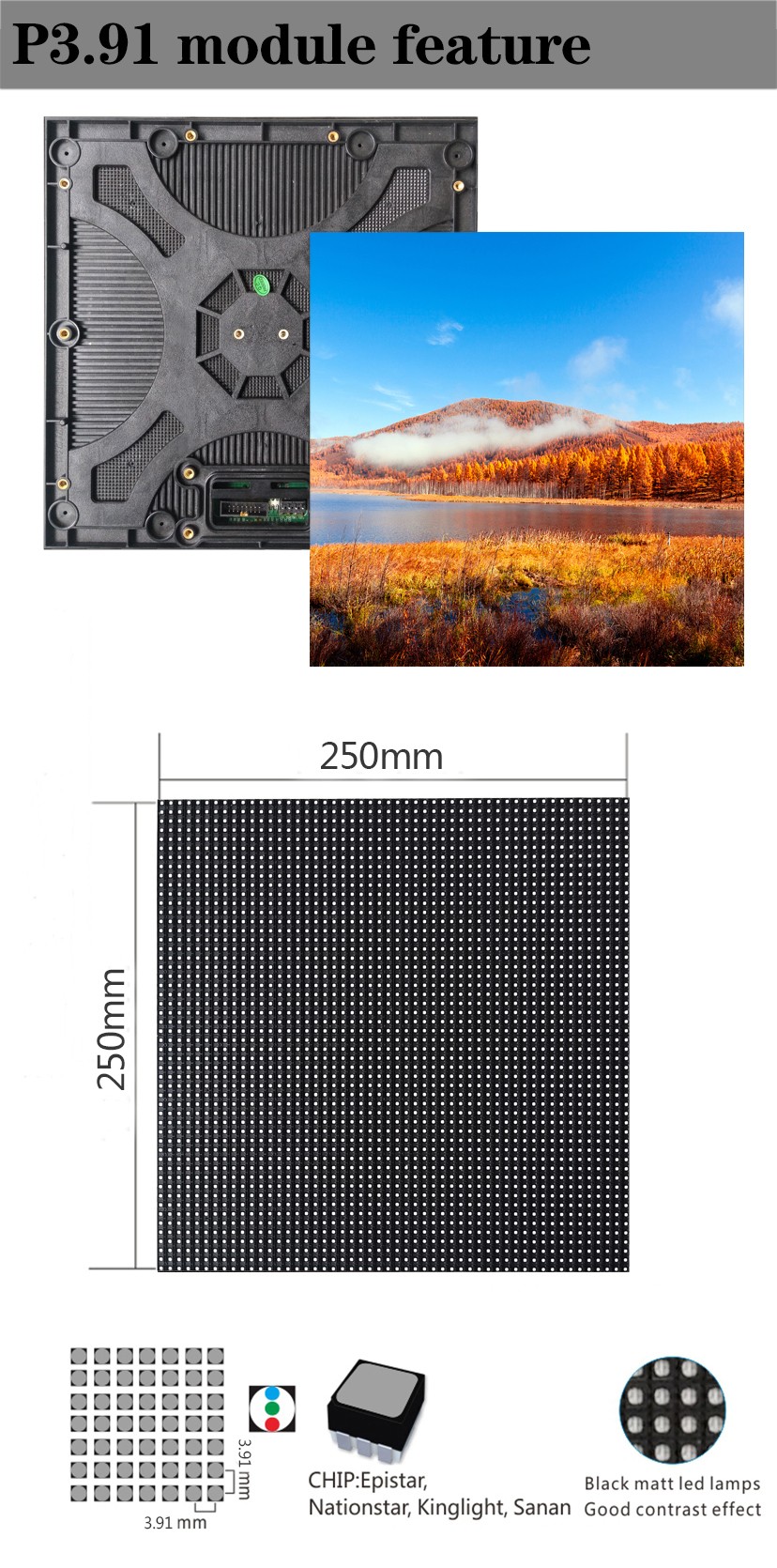

Pixel (mm) | 3.91 | 4.81 |
LED Configuration | SMD2121 | SMD1921 |
Module Resolution (W × H) | 64 * 64 | 52 * 52 |
Module Dimension (mm) | 250 (W) × 250 (H) × 15 | 250 (W) × 250 (H) × 15 |
Module weight (kg) | 0.85 | 0.85 |
Maximum Consumption Module (W) | ≦ 40 | ≦ 40 |
Pixel density (dots / m2) | 65536 | 43264 |
White Shine Of Balance (nits) | 4000-5500 | 4000-5500 |
Viewing angle (H / V °) | 140/120 | 140/120 |
Brightness / Color Uniformity | ≥ 97% | ≥ 97% |
Max (Average) Energy Consumption (W / m2) | 1000 (400) | 1000 (400) |
Food | AC90 ~ 264V, Frequency 47-63Hz) | AC90 ~ 264V, Frequency 47-63Hz) |
Refresh Rate (Hz) | 50 and 60 | 50 and 60 |
Training mode | Constant Current Control, 5Scan | Constant Current Control, 5Scan |
Shades of grey | 16384 | 16384 |
Refresh rate (Hz) | ≥ 1500 | ≥ 1500 |
Color Processing Numbers | 12-16bit | 12-16bit |
Functions | 2K HD, 4K Ultra HD Videos | 2K HD, 4K Ultra HD Videos |
Lifetime (hours) | 100,000H | 100,000H |
Operating temperature / Humidity (℃ / RH) | ± -10-40 / ± 10-80% RH | ± -10-40 / ± 10-80% RH |
