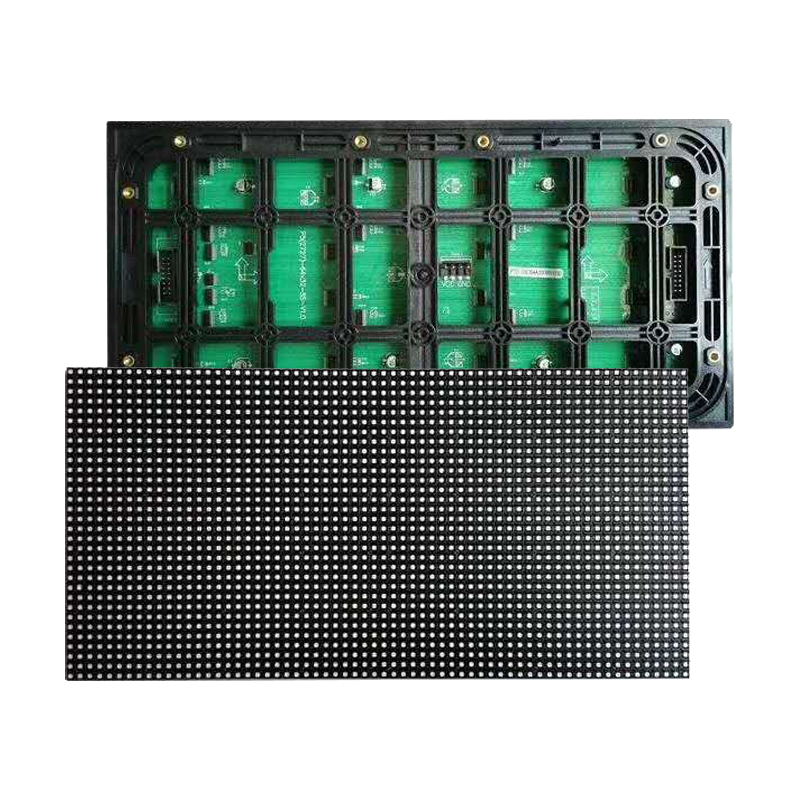

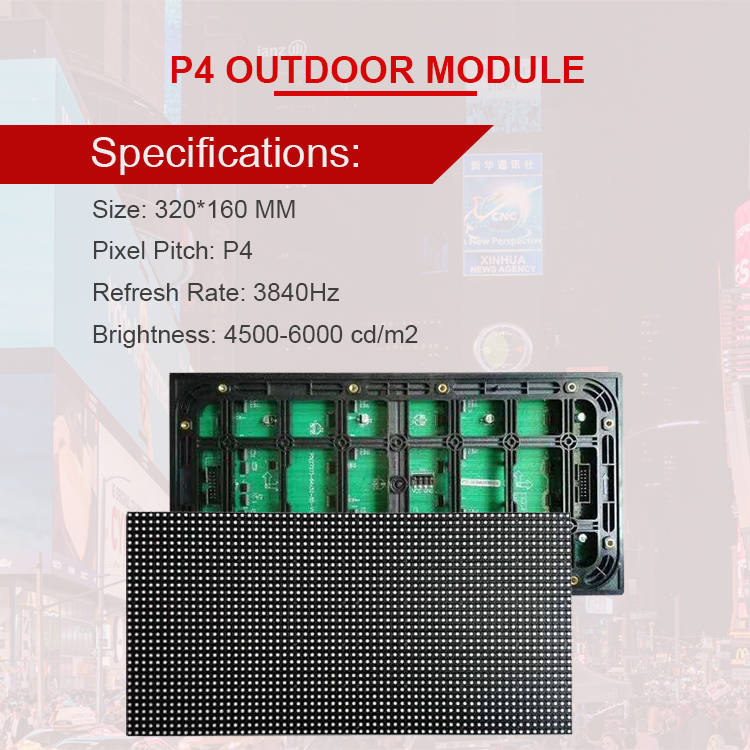

High brightness outdoor LED display panel with P4mm Pixel Pitch
High brightness IP65 waterproof outdoor P4 LED display module panel for fixed intalled LED wall display. Outdoor P4mm LEd screen module with the features of high reliability and uniformity color, visibility.
The outdoor P4 SMD LED sign panel works well with mainstream LED control systems such as Novastar, Colorlight, Linsn and more. The panel has a standard dimensions which is 320mm*160mm with the pixel pitches P3.076, P4, P5, P6.67, P8 and P10.
4mm pixel pitch with good clarity.

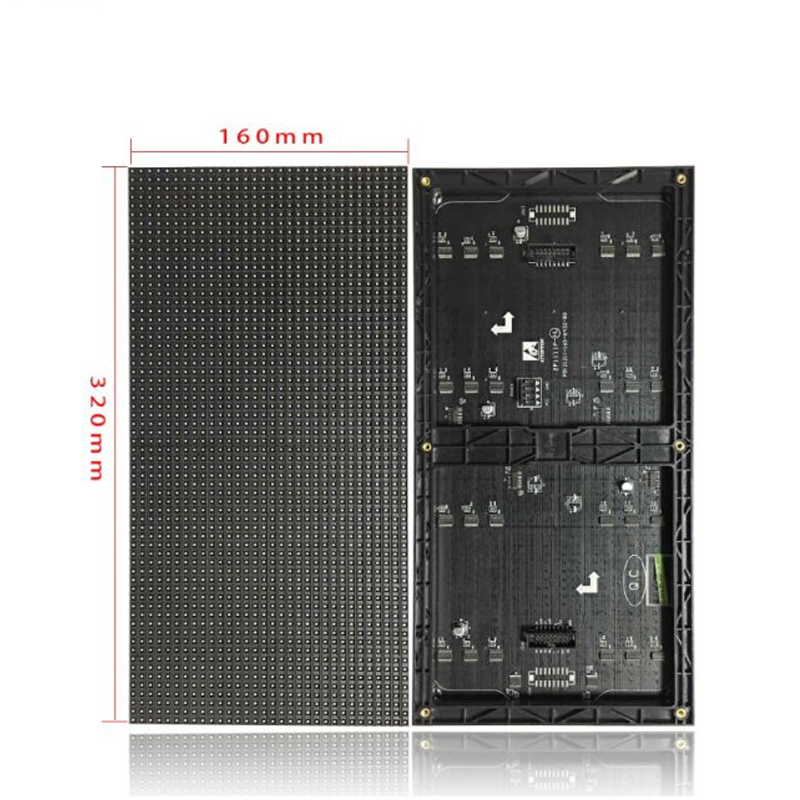

320mm X 160mm.
High resolution with 3200 or 2048 dots.
1/13 or 1/2 scan rates are available.
The high refresh rate ensure a clear image visibility.
IP65 protected, waterproof specially designed for outdoor usage.
High durable PCB board design with good heat dissipation performance.
Can be customized with Nationstar, and Kinglight LED.
Higher Refresh Rate:
The refresh rate is up to 4KHz. The LED screen displays smooth and steady videos and images without flickering or ghosting.
Higher gray scale and higher contrast ratio.
The LED screen has better performance on dark to light color display and shows more color details.
Wider Viewing Angle:
The LED screen has a wider viewing angle. It is up to 160° in the horizontal direction and 120° in the vertical direction.
| Item | Technical parameter |
| Sign | Dimension | (W) 320mm * 160mm (H) |
| Pixel launch | 4mm |
| Pixel density | 62500 / M2 |
| Pixel configuration | 1R1G1B |
| Pixels | (W) 80 * 40 (H) |
| Panel weight | 0.4KG |
| Diode manufacturer | Epistar |
| Cabinet and Support | Humidity | ≤ 95% RH |
| Panel quantity | 30.5 PIECES / M2 |
| Gateway between | HUB75 |
| Best viewing angle | Horizontal> 140 vertical> 120 |
| The best viewing distance | 4-60M |
| Operating temperature | -25- + 55 |
| Power panel | 5V40A |
| Screen power | 220VAC / 50HZ + _ 10% |
| Max Power | <850W / M2 |
| Average power | 600W / M2 |
| Technical parameter | Drive type | 1/10 scan |
| Refresh rate | > 1920 HZ / S |
| Display color | 4096 * 4096 * 4096 |
| Brightness | 5500-6500cd / M2 |
| Lifetime | 100,000 hours |
| Communication distance | <100M |
Pay attention before buying LED module:
When you buying LED modules for an LED screen, you should primarily pay attention to the specifications such as pixel pitch, viewing distance, intended usage environment (Indoor or Outdoor), brightness level, color accurancy, refresh rate, and constant current control mode.
Key Factors:
◆ We suggest you to buy from same supplier who can meets your specific needs.
◆ Buy same batch led modules for the same LED Display Screen, because different batch specifications are different, such as brightness, color, refresh rate and others.
◆ If you buy large size of LED sreen, then buy enough LED modules of same batch as spare parts.
◆Pay attention on pixel pitch and other parameters.
Warranty Terms:
BLXTECH provides an excellent after-sales service on the prerequisite of customer satisfaction.
◆ All the products owners purchased from BLXTECH possess the following rights:
◇ Unconditional replacement within 7 days.
◇ 2 Years warranty for maintenance.
◆ The repaired products will be sent back at BLXTECH cost to customer within 7 days ( from the date we receive the defective products at customers cost).
◆ 100% authentic strict assessment, for you to select high visibility, quality, good service goods; 10 times refund in case any face were found.
◆ 12 Hours after-sale service BLXTECH professional services team promises to resolve any problems related to the use, installation and configuration of the product within 12 hours.
◆ 30 days price protection if the price of the products as what you purchased is getting lower within 30 days, BLXTECH will refund the price difference.
