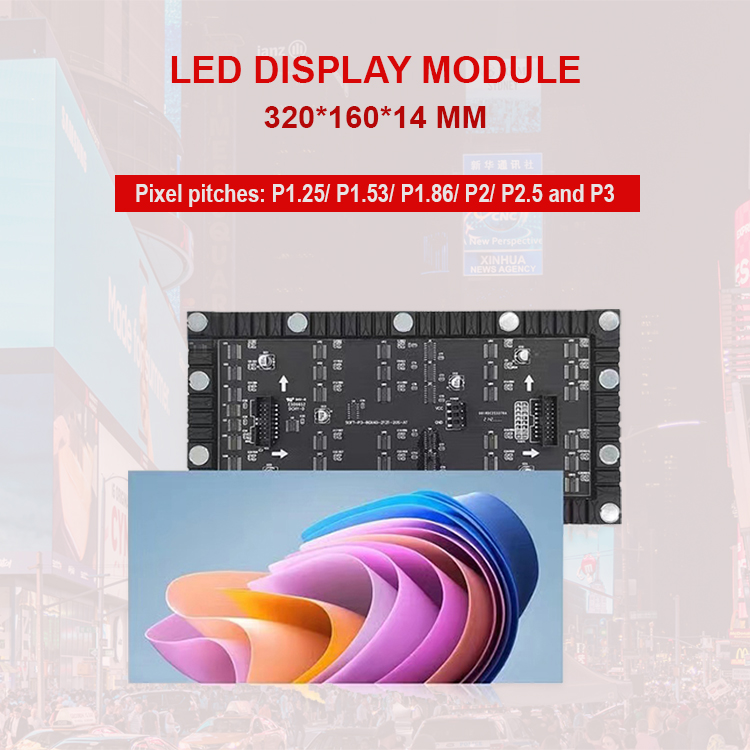

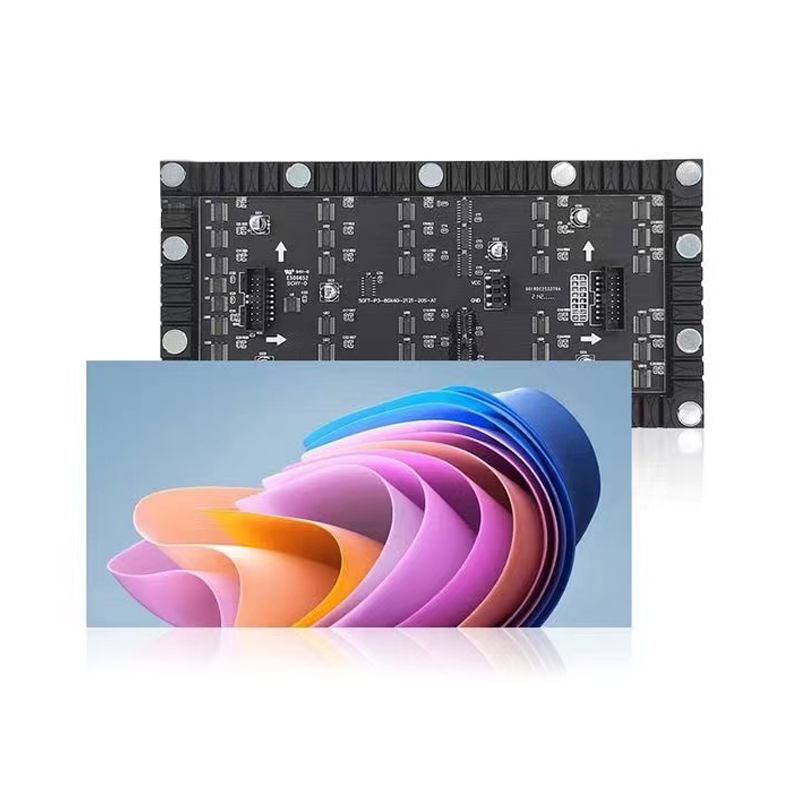

Technical Specification |
Pixel (mm) | P1.86 | P2 |
LED Configuration | SMD1515 | SMD1515 |
Module Resolution (W × H) | 172 * 86 | 160 * 80 |
Module Dimension (mm) | 320 (W) × 160 (H) × 14 | 320 (W) × 160 (H) × 14 |
Module weight (kg) | 0.6kg | 0.6kg |
Max. Consumption Module (W) | ≦ 40 | ≦ 40 |
Pixel density (dots / m2) | 289444 dots/㎡ | 250000 dots/㎡ |
Brightness (nits) | 600-1000 CD/㎡ | 600-1000 CD/㎡ |
Viewing angle (H / V °) | 160°/140° | 160°/140° |
Brightness / Color Uniformity | ≥ 97% | ≥ 97% |
Energy Consumption | ≤450W/㎡ (Max ≤1000) | ≤450W/㎡ (Max ≤1000) |
Input Current | AC90 ~ 264V, 47-63Hz | AC90 ~ 264V, 47-63Hz |
Refresh Rate (Hz) | ≥ 3840Hz | ≥3840Hz |
Training mode (Scanning) | 43s | 40s |
Shades of grey | 16384 | 16384 |
Protection level | IP30 | IP30 |
Frame Changefrequency | 50Hz & 60Hz | 50Hz & 60Hz |
Color Processing Numbers | 12-16bit | 12-16bit |
Functions | 2K HD, 4K Ultra HD Videos | 2K HD, 4K Ultra HD Videos |
Lifetime (hours) | 100,000H | 100,000H |
Operting temperature | -10 to 50℃ | -10 to 50℃ |
Humidity (℃ / RH) | ±10-65% RH | ±10-65% RH |
Pay attention before buying LED module:
When you buying LED modules for an LED screen, you should primarily pay attention to the specifications such as pixel pitch, viewing distance, intended usage environment (Indoor or Outdoor), brightness level, color accurancy, refresh rate, and constant current control mode.
Key Factors:
◆ We suggest you to buy from same supplier who can meets your specific needs.
◆ Buy same batch led modules for the same LED Display Screen, because different batch specifications are different, such as brightness, color, refresh rate and others.
◆ If you buy large size of LED sreen, then buy enough LED modules of same batch as spare parts.
◆Pay attention on pixel pitch and other parameters.
Warranty Terms:
BLXTECH provides an excellent after-sales service on the prerequisite of customer satisfaction.
◆ All the products owners purchased from BLXTECH possess the following rights:
◇ Unconditional replacement within 7 days.
◇ 2 Years warranty for maintenance.
◆ The repaired products will be sent back at BLXTECH cost to customer within 7 days ( from the date we receive the defective products at customers cost).
◆ 100% authentic strict assessment, for you to select high visibility, quality, good service goods; 10 times refund in case any face were found.
◆ 12 Hours after-sale service BLXTECH professional services team promises to resolve any problems related to the use, installation and configuration of the product within 12 hours.
◆ 30 days price protection if the price of the products as what you purchased is getting lower within 30 days, BLXTECH will refund the price difference.
