Model number | P6 led module |
Type | SMD2727 |
Lamp Brand | Epistar |
Arrangement | 1R1G1B |
Pixel launch | 6mm |

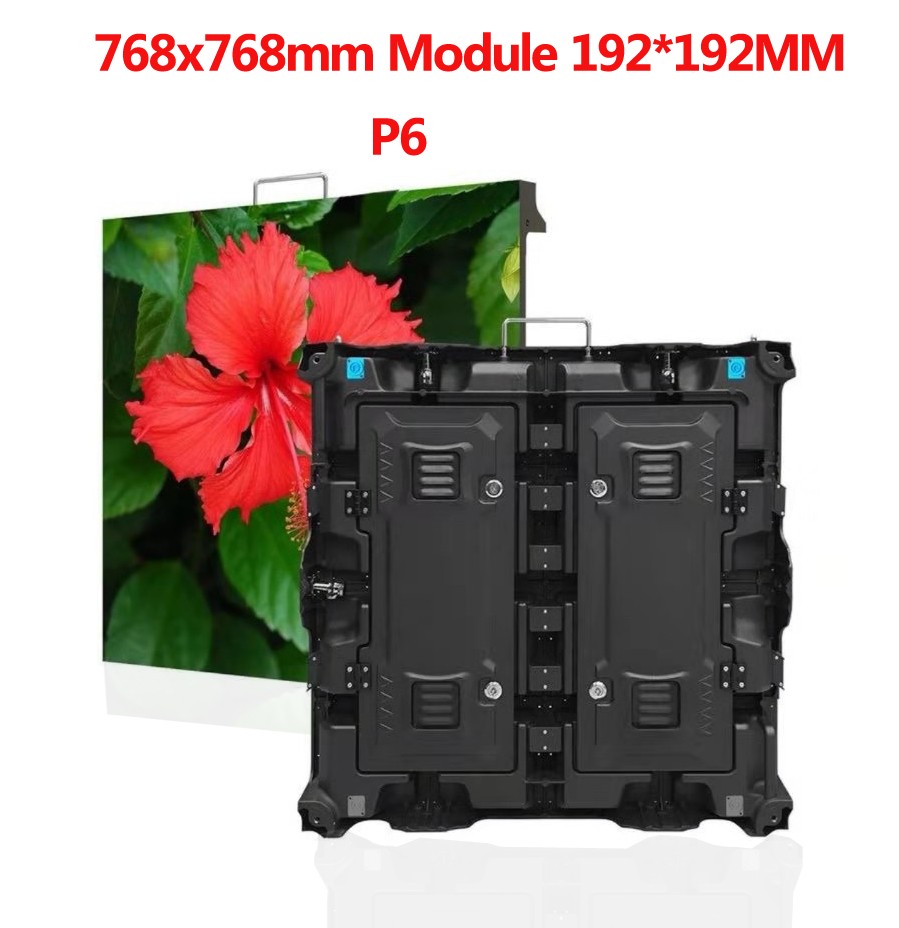

Module Size | 192 × 192mm |
Module Resolution | 32 × 32 = 1024 (points) |
Pixel density | 27777 points / ㎡ |
Grey color | 16bit |
Grayscale by Color | 65536 level |
Cabinet Weight | 45kg |
Brightness | > 6000cd / m2 |
Viewing angle | 120 (H), 120 (V) |
Lifetime | 100,000 hours |
Refresh rate | ≥ 1000Hz |
Certificate | CE, ROHS, FCC, ISO9001, TUV |
Characteristics:
1. Various pixel pitch from 3mm to 10mm.
2. True to life color performance bright color uniformity.
3. High brightness, high resolution and high refresh rate.
4. Transparent installation with excellent flatness.
5. High contrast ratio which ensures vivid images.
6. Low power consumption, environmentally friendly.
7. Long viewing distance without distortion.
8. Wide viewing angle, 140 degree both horizontal and vertical.
9. Customization for different sizes and adjustable.
10. Long service life and stable performance.
11. Low cost and reduced maintenance costs.
12. UV, waterproof, IP65.
