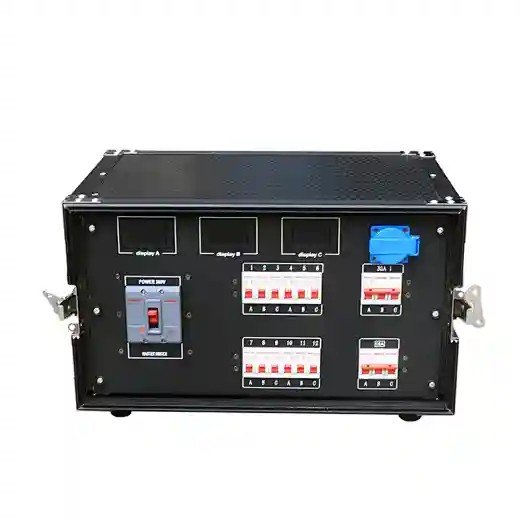

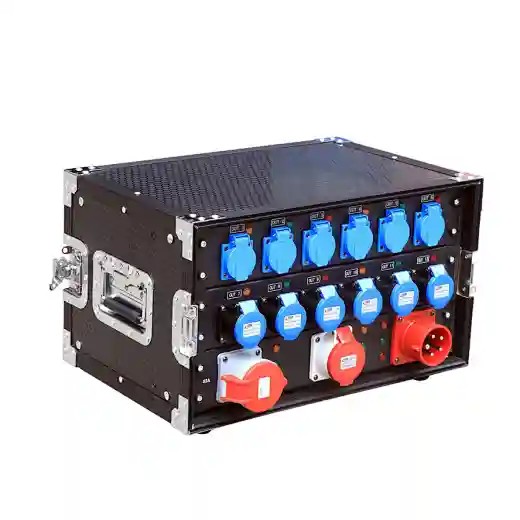

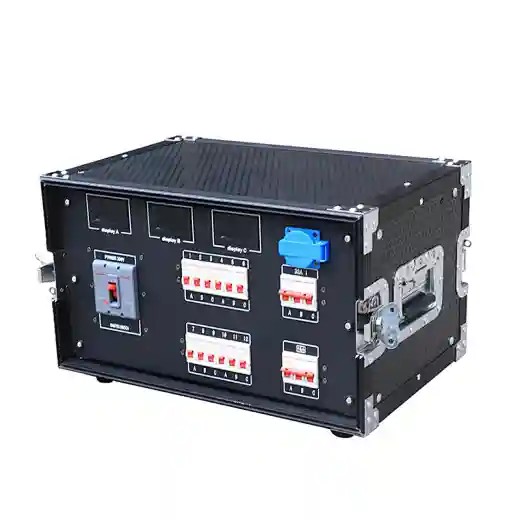

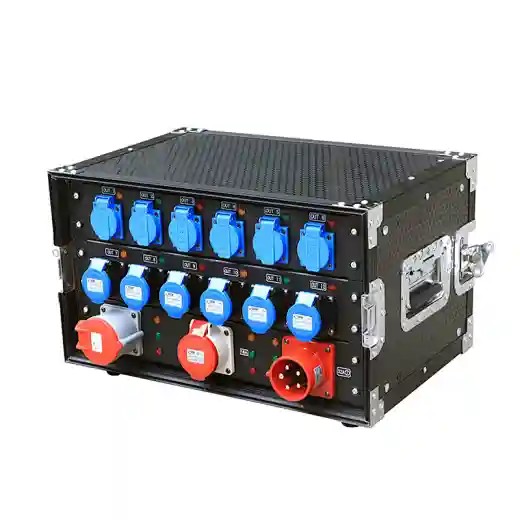

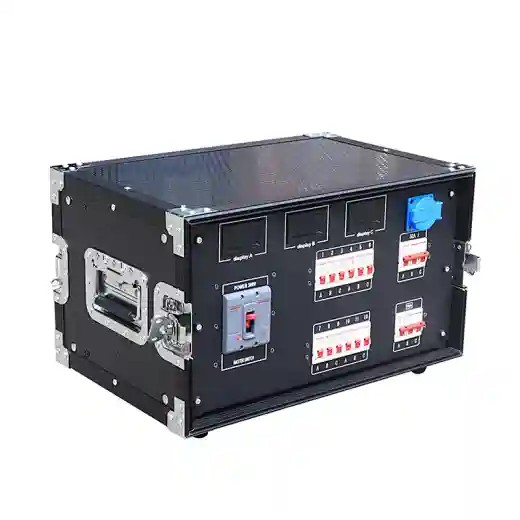

32A 5Pin + 16A 5Pin Output 32A 3Pin industrial plug (IP44) Input Power Distributor
1. Power supply: three-phase five-wire system AC380±10%; optional AC220±10%; frequency 50Hz/60Hz±5%
2. Input current: 32A 3P industrial plug (IP44); output 32A (5P) + 16A (5P)
3. Display: with three-phase A.B.C direct-reading independent LCD current and voltmeter display, real-time monitoring data without switching
4. Output: 6-way 1601 Euro plug+6-way 16A waterproof output, each output with indicator light display

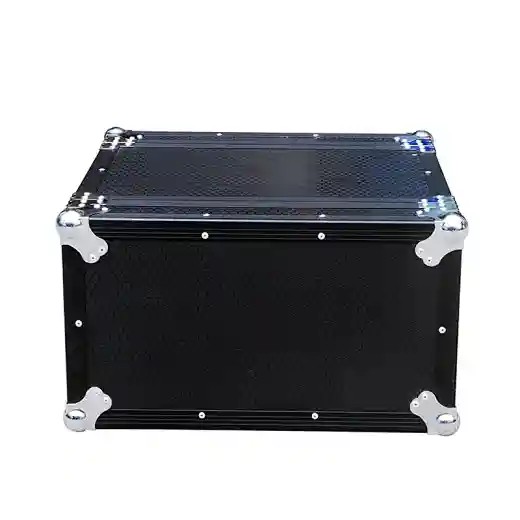

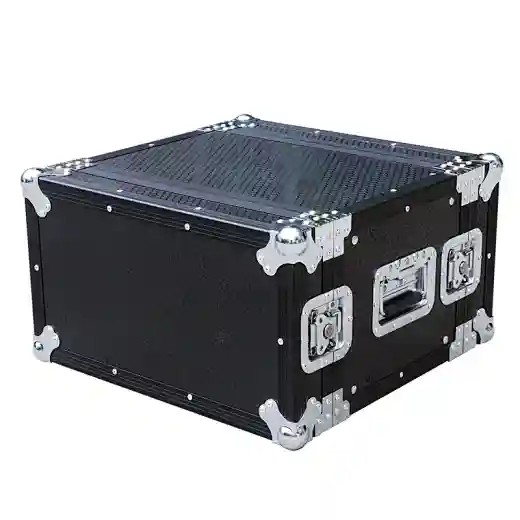

5. Body: using exquisite single-layer hexagonal pattern fireproof board; 6U standard cabinet.
6. Control system: 40A main air switch is used for the main control; each circuit is independently separated with a C20A air switch. With overload, short circuit double protection
Normal working environment:
1. Ambient temperature: 0-±45C
2. Relative humidity: 40%-80%
Product size (mm): L530×W520×H330
