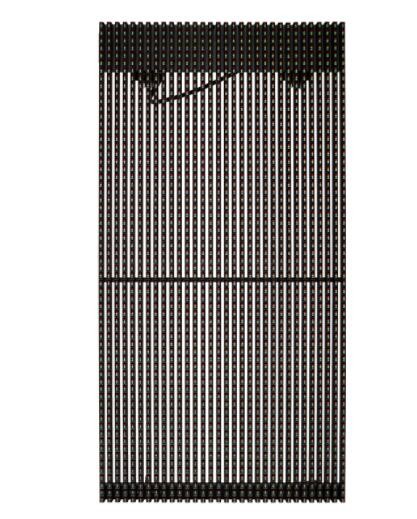

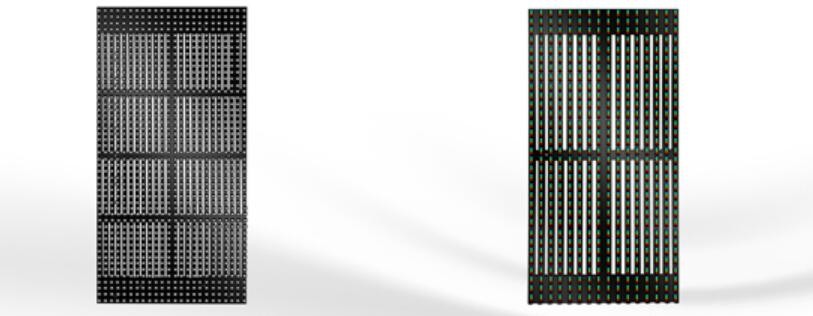

Product | P10.42 | P15.6 | P15.6 (DIP) |
Pitch | 10.42mm | 15.6mm | 15.6mm |
Density (pixels / m2) | 9216 | 4096 | 4096 |
LED Type | SMD3535 | SMD3535 | DIP346 |
Brightness | 6000 nits | 6000 nits | 8000 nits |
Scanning method | 1/3 | Static | Static |
Cabinet size | 500 * 1000mm |
Module Size | 250 * 500mm |
Cabinet material | Aluminum Die Casting |
Cabinet Weight | 9.5KG | 11KG |
Protection level | IP65 |
Maintenance Cabinet | Front and Rear Service |
Transparency | 20% | 30% | 25% |
Maximum Energy Consumption | 800 w / m2 | 800 w / m2 | 600 w / m2 |
Average consumption | 280 w / m2 | 280 w / m2 | 200 w / m2 |
Refresh rate (Hz) | 2880-3840HZ |
Gray scale | 16 bits |
Viewing angle | H140 °, V140 ° | H140 °, V140 ° | H140 °, V70 ° |
Voltage | AC100-240V (50-63HZ) |
Operating temperature | -30 ° c- + 65 ° c |
Working humidity | 10% -90% RH |
Color temperature | 6000-9500K |
Certifications | Cem / CE / RHOS / CCC / FCC / ISO |
Available Pixels | P15.6-25 and P15.6-31.25 cabinet size: 1m * 1m |
Warrenty Terms:
BLXTECH provides an excellent after-sales service on the prerequisite of customer satisfaction.
1. All the products owners purchased from BLXTECH possess the following rights:
A: Unconditional replacement within 7 days.
B: 2 years warranty for maintenance.
2. The repaired products will be sent back at BLXTECH cost to customer within 7 days( from the date we receive the defective products at customers cost).
3. 100% authentic strict assessment, for you to select high visibility, quality, good service goods; 10 times refund in case any fake were found.
4. 12 hours after-sale service BLXTECH professional services team promises to resolve any problems related to the use, installation and configuration of the product within 12 hours.
5. 30 days price protection If the price of the products as what you purchased is getting lower within 30 days, BLXTECH will refund the price difference.
