Transparent LED display glass wall screen glass led display manufacturers
Features:

    BLXTECH

    CHINA

    5-7 DAYS

    100 SQM / DAY

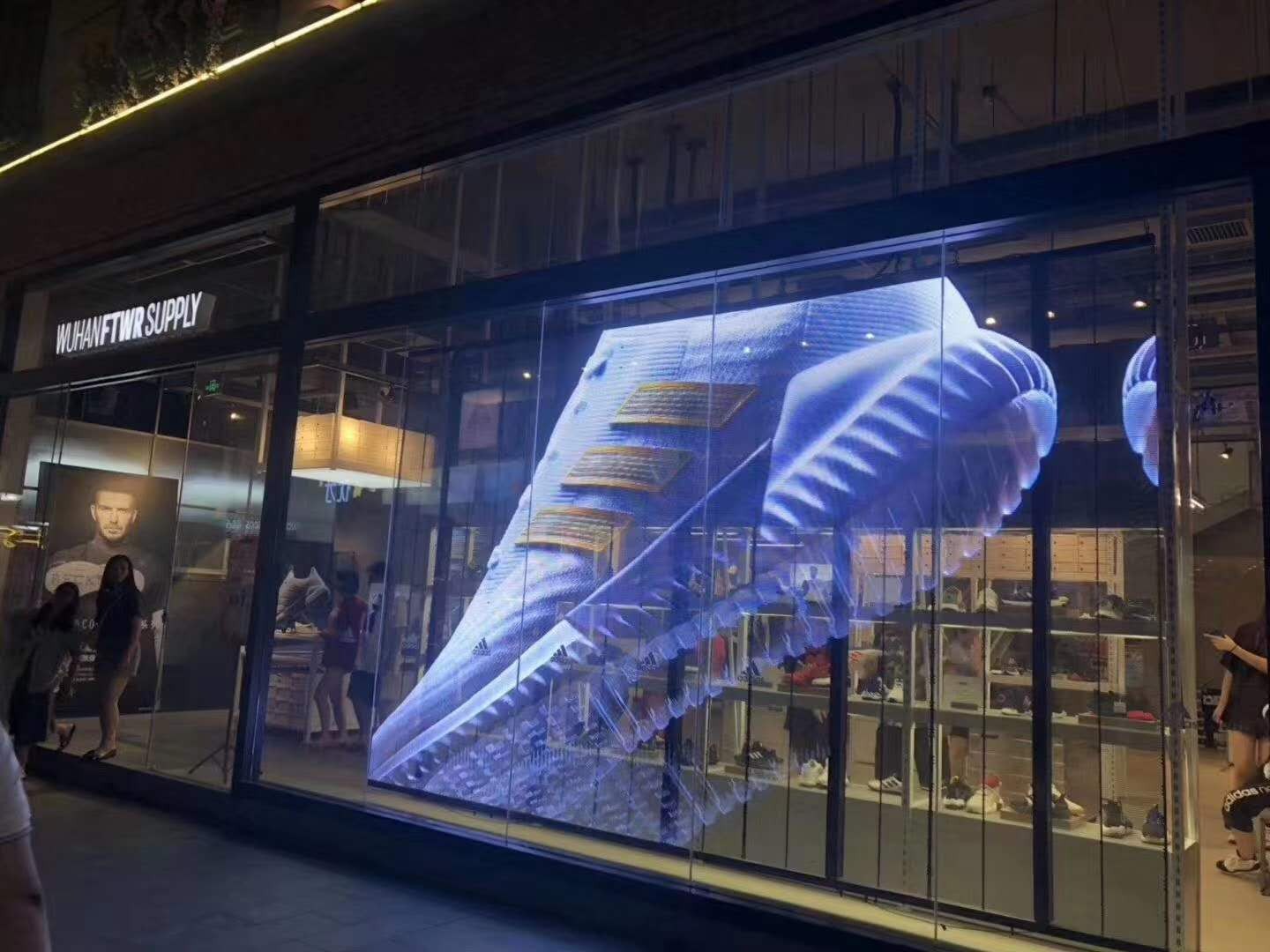

    Tentech specializes in the design and manufacturing of transparent LED displays and screens suitable for walls, films, mesh, nets, and glass applications. These advanced displays provide exceptional transparency and high-resolution visuals, making them ideal for integration into architectural structures, retail environments, and digital signage.
    Tentech's transparent LED solutions combine state-of-the-art technology with energy efficiency, offering flexible and customizable options to meet diverse commercial and architectural display requirements.


Advantage of our product:

◆High transparency rate up to 80% transparent, both people inside and outside could have a clear view.

◆Ultra thin design and light weight 80mm thickness and 14KG/SQM weight could save the installation space.

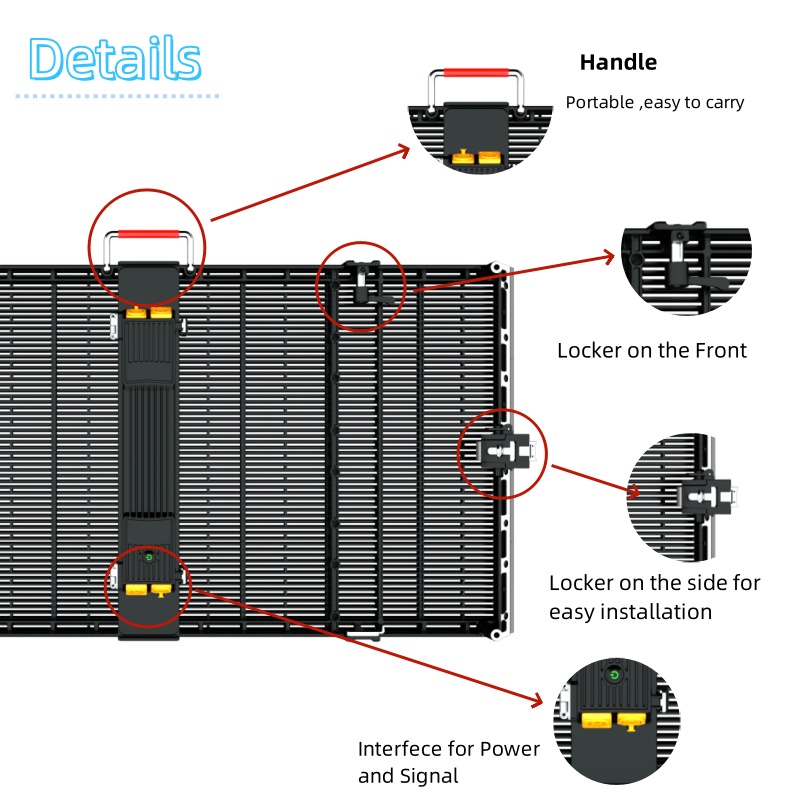

◆Fast installation and easy maintenance, cause don't need any steel structure to install. Front maintenance save times and installation costs.

◆Good heat dissiptions, no need to use radiator like normal LED screen.

◆Two installation applications which is fixed and rental installations.


Warranty of our products:

BLXTECH provides an excellent after-sales service on the prerequisite of customer satisfaction.

■ All the products owners purchased from BLXTECH possess the following rights:

□ Unconditional replacement within 7 days.

□ 2 Years warranty for maintenance.

■The repaired products will be back at BLXTECH cost to customer within 7 days (from the date we receive the defective products at customers cost).

■100% authentic strict assessment for you to slect high visibility, quality, good service, 10 times refund in case of fake were found.

■ 12 hours after-sales service BLXTECH professional service team promises to resolve any problems related to the use, installation and configuration of the product within 12 hours.

■ 30 days price protection if the price of the products as what you purchased is getting lower within 30 days, BLXTECH will refund the price difference.

Transparent LED Display Specification

Pixel Pitch

3.91mm-7.81mm

Pixel Density

32768dots / sqm

Color Configuration

1R1G1B

LED Package

SMD2121

Module Size

500mm x 250mm

Drive Mode

1/7 Scan

Standard Cabinet Size

1000mm x 500mm

Cabinet Weight

7KG

Brightness

1000 - 4200nits

Viewing Distance

4m-50m

Viewing Angle

H: 120 °; V: 120 °

Refresh Rate

1920 - 3840HZ

Frame Rate

120frame / sec

Gray Scale

16.7M colors (Synchronized)

Color Temperature

RGB brightness 256 level adjustable

Power Input

AC110V / 220V ± 10, 50HZ

Max Power Consumption

500W / sqm

Ave. Power Consumption

200W / sqm

Storage Temperature

-30 ~ + 70 degree

Working Temperature

-20 ~ + 50 degree

Blind Spot Rate

<1/10000

MTBF

> 10,000 Hours

Life Span

> 100,000 Hours

Waterproof

Front: IP65 Rear: IP54

Operating Humidity

10% ~ 95%

Control PC

With DVI Graphic card

Control Method

LINSN, NOVASTAR, COLORLIGHT

Operating System

Win 98, Win2000, XP, Win7, Win8, Win10

Video Signal Mode

RF, S-Video, RGB, RGBHV, YUV, YC etc

Certificate

CE, RoHS
