640320MM Pixel LED Panels Digital LED Module Indoor LED Display 64x32
Features:

    BLXTECH

    CHINA

    5-7 DAYS

    120 SQM/DAY

    The 640x320mm Pixel LED Panel is a high-quality indoor LED display module, featuring a 64x32cm cabinet pixel configuration. Ideal for digital signage, advertising, and indoor events, it delivers vibrant visuals with excellent color accuracy and clarity. Designed for easy installation and maintenance, this LED module ensures reliable performance and energy efficiency. With a robust build, it is suitable for various indoor applications requiring bright, clear, and dynamic content display.


BLXTECH offers a range of high-quality indoor fine pixel pitch LED displays, ideal for applications requiring high resolution and vibrant visual performance. The available pixel pitches include P1.2, P1.5, P2, P2.5, and P3, catering to various needs for indoor environments such as corporate presentations, control rooms, retail displays, and high-end advertising.

Here’s a brief overview of each pixel pitch:

P1.2: With a pixel pitch of 1.2mm, this display provides ultra-high resolution, offering sharp images and clarity at close viewing distances. Ideal for small spaces or premium environments requiring highly detailed visuals.

P1.5: Slightly larger pixel pitch that still delivers excellent image quality with a balance of resolution and cost-effectiveness for environments where high-quality visuals are needed without the cost of P1.2.

P2: A great option for medium-to-large indoor installations, providing sharp images at reasonable viewing distances and a more affordable solution compared to the finer pixel pitches.

P2.5: Offers a great compromise between performance and price, making it ideal for general indoor applications where close-up details aren’t as critical but clarity is still important.

P3: A versatile option with a slightly larger pixel pitch, suitable for larger indoor environments where the display will be viewed from farther distances.


Key Features:

★High Resolution: All these models feature high pixel density for excellent image clarity.

★Wide Viewing Angle: Ensures optimal image quality from various viewing angles.

★Low Power Consumption: Designed to be energy efficient, reducing operational costs.

★Sleek and Slim Design: Easy to install in a variety of indoor environments.

★Durability: Long lifespan and high reliability, backed by strict quality control.


These fine-pitch LED displays are ideal for applications requiring high image quality, such as:

☆Conference rooms

☆Command centers

☆Digital signage

☆Retail and exhibition displays

If you're interested in specific technical details or prices for any of these models, feel free to reach out!


Fine/Small Pixel LED Dosplay - Specification

Module Specifications:
Pixel pitchP1.25P1.538P1.667P1.86P2P2.5P3.076
Module size320mm X 160mm320mm X 160mm320mm X 160mm320mm X 160mm320mm X 160mm320mm X 160mm320mm X 160mm
Module resolution256x128 dots208x104 dots192x96 dots172x86 dots160x80 dots128x64 dots104x52 dots
Module pixels32768 dots31632 dots18432 dots14792 dots12800 dots8192 dots5408 dots
ICICN2153
LED configuration3 in 1
Weight0.48 KG
Cabinet Specifications:
Cabinet size (WH)640 X 320mm640 X 320mm640 X 320mm640 X 320mm640 X 320mm640 X 320mm640 X 320mm
Module quantity (WH)2 X 2pcs = 4pcs2 X 2pcs = 4pcs2 X 2pcs = 4pcs2 X 2pcs = 4pcs2 X 2pcs = 4pcs2 X 2pcs = 4pcs2 X 2pcs = 4pcs
Cabinet resolution512 X 256 dots416 X 208 dots384 X 192 dots344 X 172 dots320 X 160 dots256 X 128 dots208 X 104 dots
Cabinet pixels131072 dots86528 dots73728 dots59168 dots51200 dots32768 dots21632 dots
Pixel density640000 dots/㎡422500 dots/㎡360000 dots/㎡288906 dots/㎡250000 dots/㎡160000 dots/㎡105625 dots/㎡

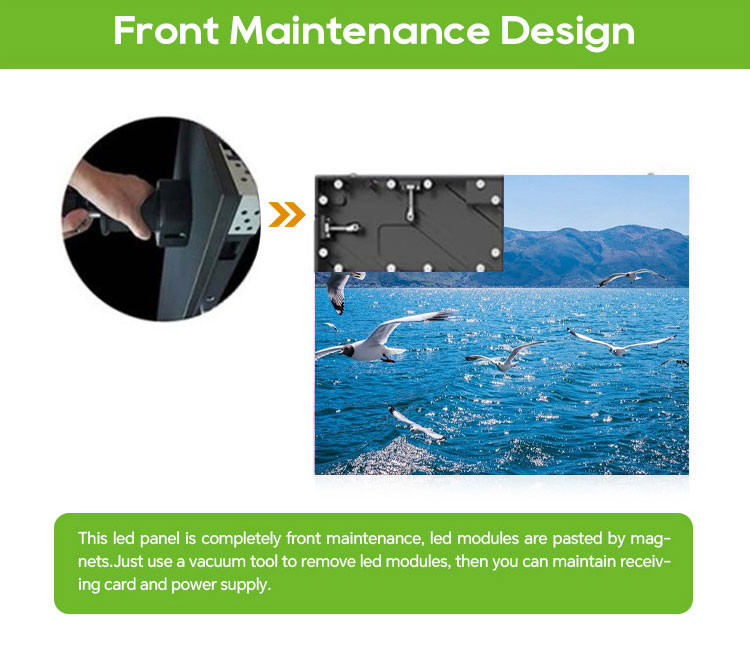

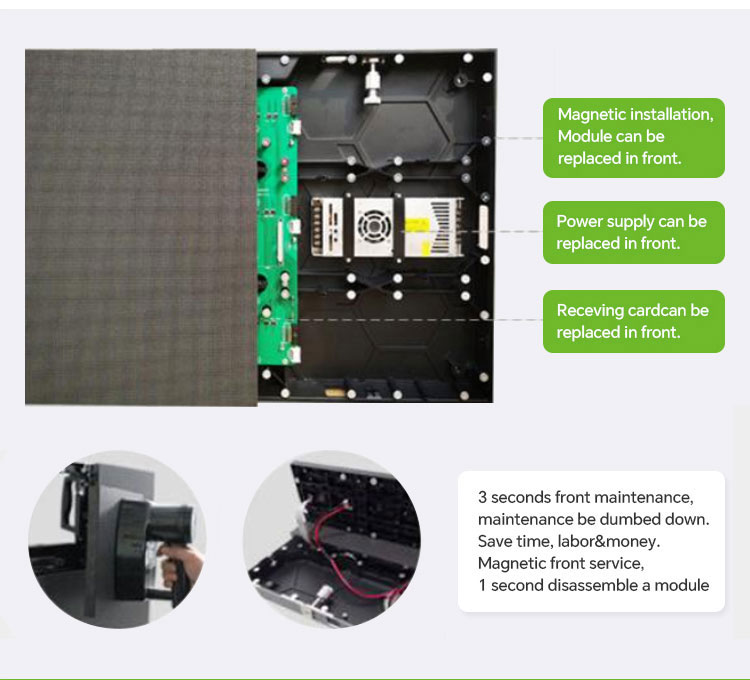

Service AccessFront maintenance
Cabinet materialDie-casting aluminum
Weight7.8KG
Screen Parameters:
Best viewing distance1.5--4M1.5--4.5M2--5M2--5.5M2--6M2.5--7.5M3--9M
Driving method1/64 scan constant current1/52 scan constant current1/64 scan constant current1/43 scan constant current1/40 scan constant current1/32 scan constant current1/26 scan constant current
Brightness600cd/㎡
Brightness controlRed, Green and Blue 8192 Grade/Each
View angleHorizontal 160°, Vertical 140°
Refresh3840Hz
Input voltageAC 110-240V, 50~60Hz
Defects rate≤0.0001
Power consumptionMax.: 650W/㎡,  Average; 300W/㎡
MTBF>10,000 hours
Life span≥100,000 hours
Uniformity<0.01%
Earth leakage current<2mA
Protective gradeIP 32
Color281 Millions
OutputHDMI/DVI/VGA/RGB/PbPr (HDTV)
Operating temperature-20℃ to +60℃
Operating humidity10% to 90% RH
Controlling systemNovastar
Operating sysytemWindows10/me/2000/NT/XP/Windows 7/Vistar
