Outdoor Lightweight LED Display For Wall-Mounted Installation
Features:

    BLXTECH

    CHINA

    3-5 DAYS

    100 SQM PER DAY

    LED displays offer numerous environmental and business advantages. Environmentally, they enhance safety, improve quality of life, and provide better service with outdoor signage. Their lightweight design simplifies installation. For businesses, LED displays broaden customer reach with high-quality, eye-catching images and enable efficient content updates, saving time and resources. These benefits not only reduce environmental impact but also drive engagement and growth, making LED technology an ideal solution for modern advertising needs.

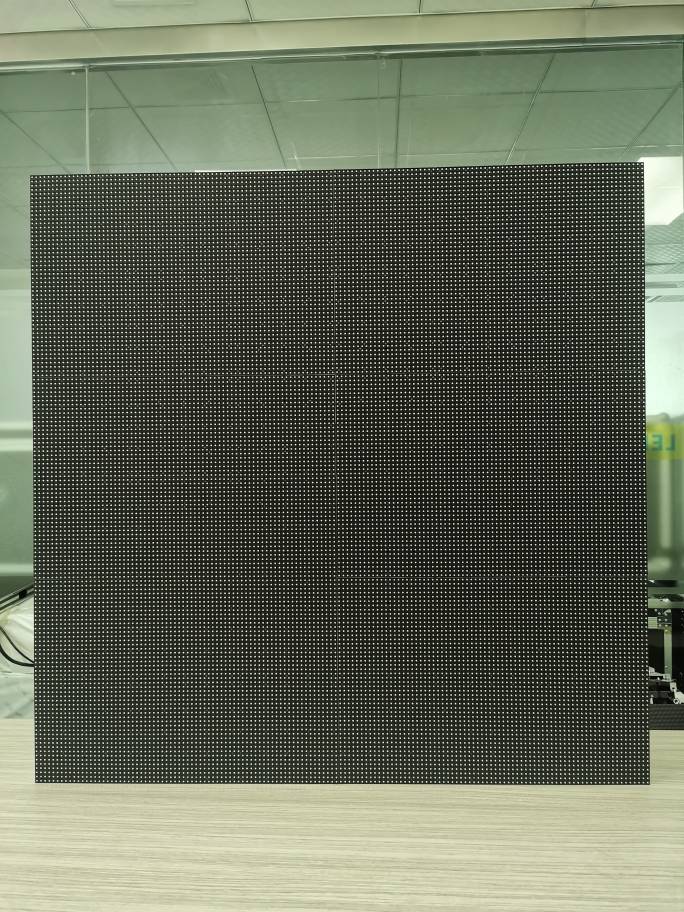

960X960MM, Outdoor Advertisng Display

An outdoor fixed LED display is an ideal solution for delivering high-impact visual communication in open spaces. Designed to withstand harsh weather conditions, these displays are equipped with high brightness, waterproofing, and dustproofing features, ensuring optimal performance in diverse environments. Their exceptional durability and energy efficiency make them suitable for long-term installations in areas such as shopping malls, sports arenas, highways, and city squares.

These LED displays offer stunning visual quality, with vibrant colors and sharp resolutions that attract attention from a distance. Easy maintenance and customizable sizes allow businesses to tailor their signage to specific needs, enhancing brand visibility and audience engagement.

Key Features of Outdoor Fixed LED Displays

Weather Resistance: Fully waterproof, dustproof, and resistant to extreme temperatures, ensuring reliable performance in all outdoor conditions.

High Brightness: Superior brightness levels for clear visibility, even under direct sunlight.

Durable Build: Robust materials and design for long-term, fixed installations in harsh environments.

Energy Efficiency: Advanced technology reduces power consumption, offering cost savings over time.

Customizable Sizes: Flexible dimensions and resolutions to suit diverse applications and viewing distances.

Vivid Visuals: High refresh rates and color accuracy for stunning display quality.

Easy Maintenance: Front or rear access options for quick servicing and reduced downtime.


Warrenty Terms - LED Display Screens

BLXTECH provides an excellent after-sales service on the prerequisite of customer satisfaction.

1. All the products owners purchased from BLXTECH possess the following rights:

A: Unconditional replacement within 7 days.

B: 2 years warranty for maintenance.

2. The repaired products will be sent back at BLXTECH cost to customer within 7 days( from the date we receive the defective products at customers cost).

3. 100% authentic strict assessment, for you to select high visibility, quality, good service goods; 10 times refund in case any fake were found.

4. 12 hours after-sale service BLXTECH professional services team promises to resolve any problems related to the use, installation and configuration of the product within 12 hours.

5. 30 days price protection If the price of the products as what you purchased is getting lower within 30 days, BLXTECH will refund the price difference.

Outdoor Fixed Install Specification

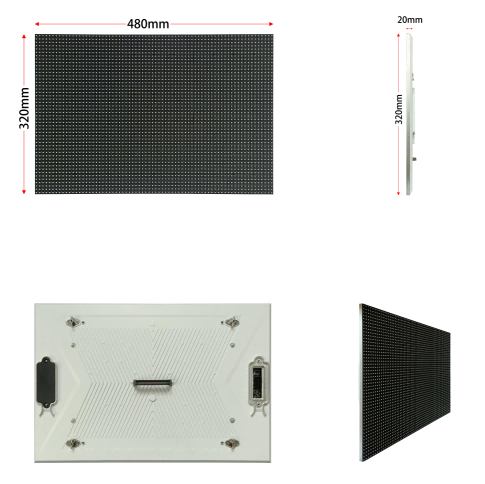

Module Specification

Model number3.076-134-10S5-8S6.67-6S8-5S10-4S
LED lampSMD1415SMD1921SMD3535
Pixel pitchP3.076P4P5P6.67P8P10
Module size320x160MM
Module resolution104 dots X 52 dots80 dots X 40 dots64 dots X 32 dots48 dots X 24 dots40 dots X 20 dots32 dots X 16 dots
Module thickness17MM
Brightness5000cd/㎡5500cd/㎡
Module weight0.46KG0.45KG0.45KG0.45KG0.44KG0.42KG

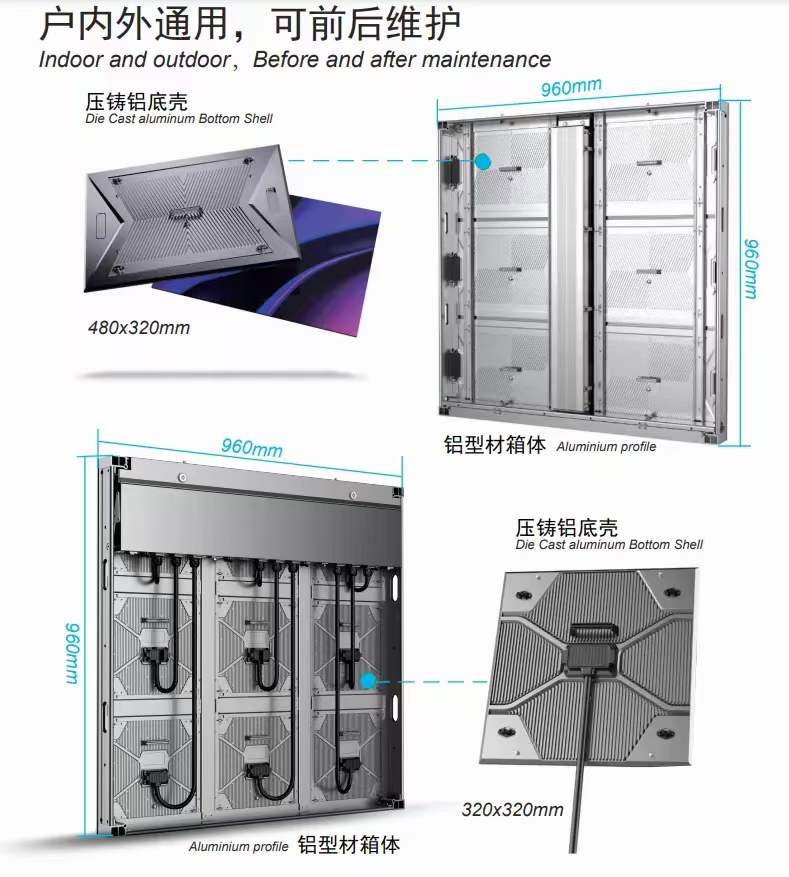

Cabinet Specification

Cabinet size (W/H)960mm X 960mm
Module quantity3pcs(W) x 6pcs(H) = 18 Pcs
Cabinet resolution312 dots X 312 dots240 dots X 240 dots192 dots X 192 dots144 dots X 144 dots120 dots X 120 dots96 dots X 96 dots
Cabinet Pixels97344 dots57600 dots36864 dots20736 dots14400 dots9216 dots
Pixel density105625 dots/㎡62500 dots/㎡40000 dots/㎡22500 dots/㎡15625 dots/㎡10000 dots/㎡

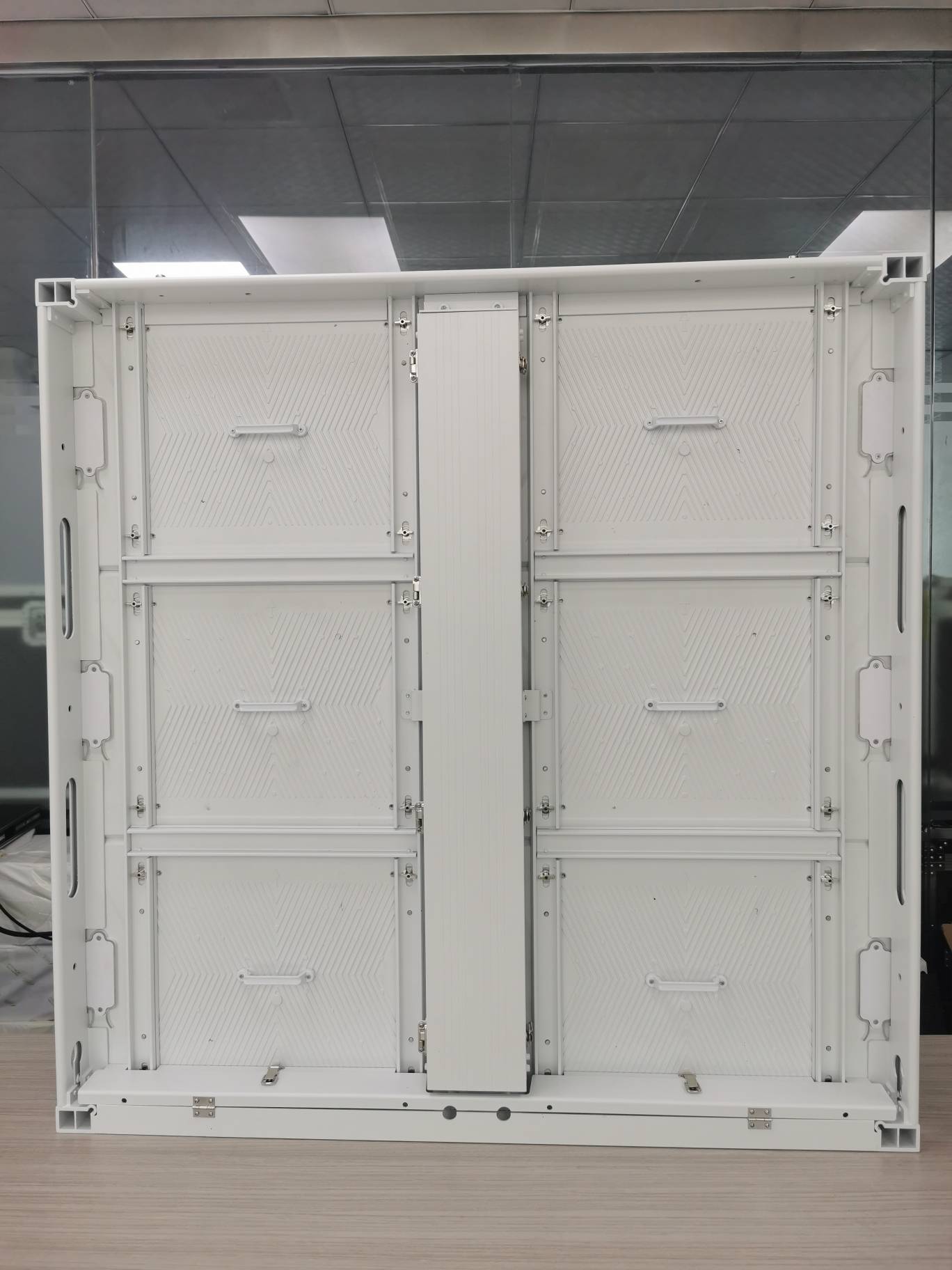

Service accessRear
Cabinet materialDie-casting Aluminum
Cabinet weight25Kg/pc

Screen Parameters

Brightness5000cd/㎡5500cd/㎡5500cd/㎡5500cd/㎡5500cd/㎡5500cd/㎡
Driving method1/13 Scan Constant Current1/10 Scan Constant Current1/8 Scan Constant Current1/6 Scan Constant Current1/5 Scan Constant Current1/4 Scan Constant Current
View angleHorizontal 140℃, Vertical 140℃
Best viewing distance3-10M4-12M5-15M6.5-20M8-24M10-30M
Brightness controlRed, Green and Blue 8192 Grade/Each
Refresh3840Hz
Input voltageAC: 110-240V  50~60Hz
Defects rate≤0.00001
Power consumptionMax.: 800W/㎡   Average: 300W/㎡
MTBF>10,000 Hours
Life span≥100,000 Hours
Brightness uniformity<0.01%
Earth leakage current<2mA
Protective gradeIP 66
Color281 Millions
OutputHDMI/DVI/VGA/RGB/PbPr (HDTV)
Operating temperature-20℃ to +60℃
Operating humidity10% to 90% RH
Controlling systemNovastar
Operating systemWindows10/me/2000/NT/XP/Windows7/Vistar
