Large Displays & Screen Rentals
BLXTECH 's indoor and outdoor rental LED screens, designed for diverse events, exhibitions, Stage, offer pixel pitches for
indoor of P2.604, P2.976, P3.91 and P4.81, for outdoor offer pixel pitches of P3.91, P4.81, P5, and P6.

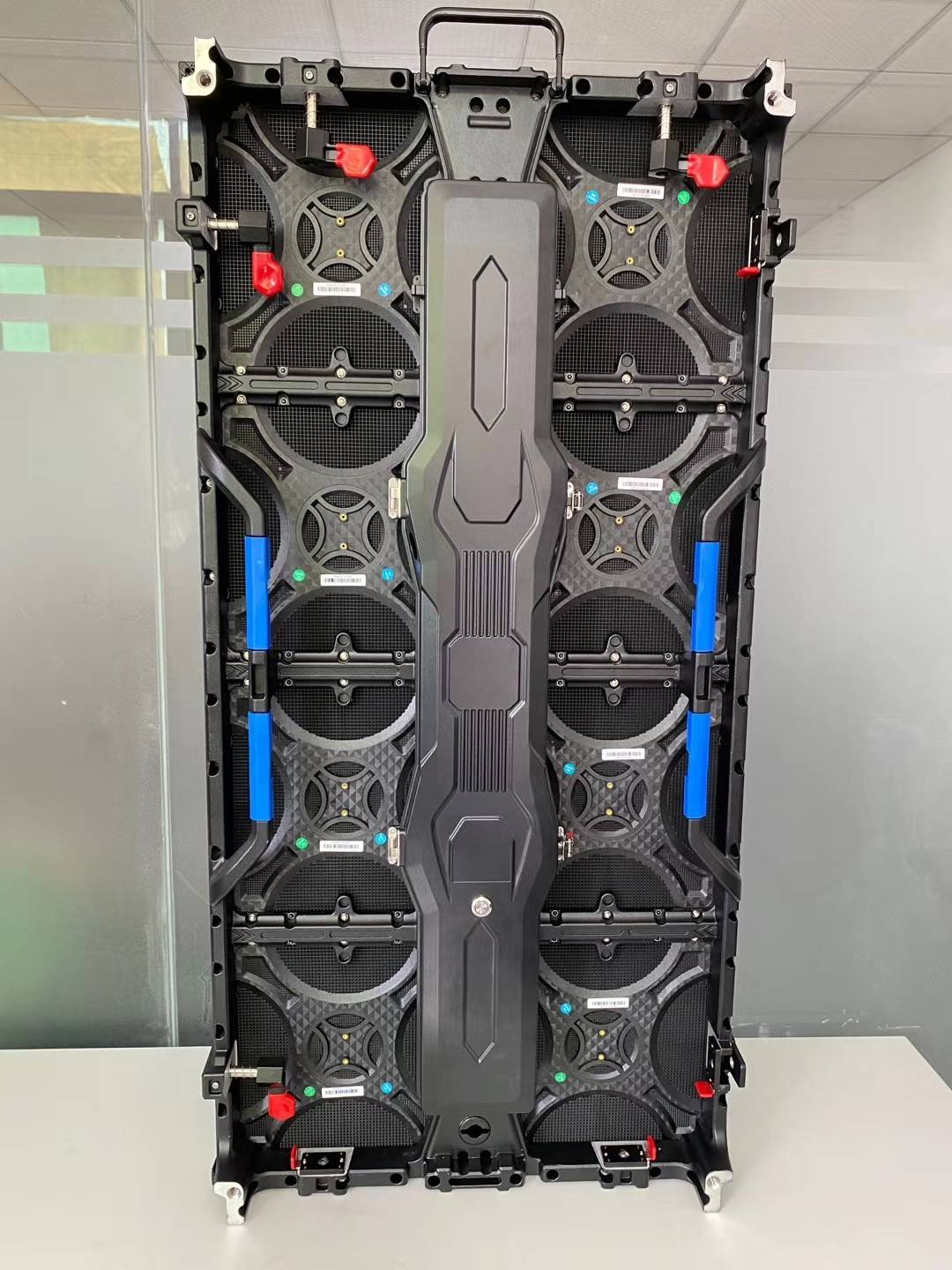

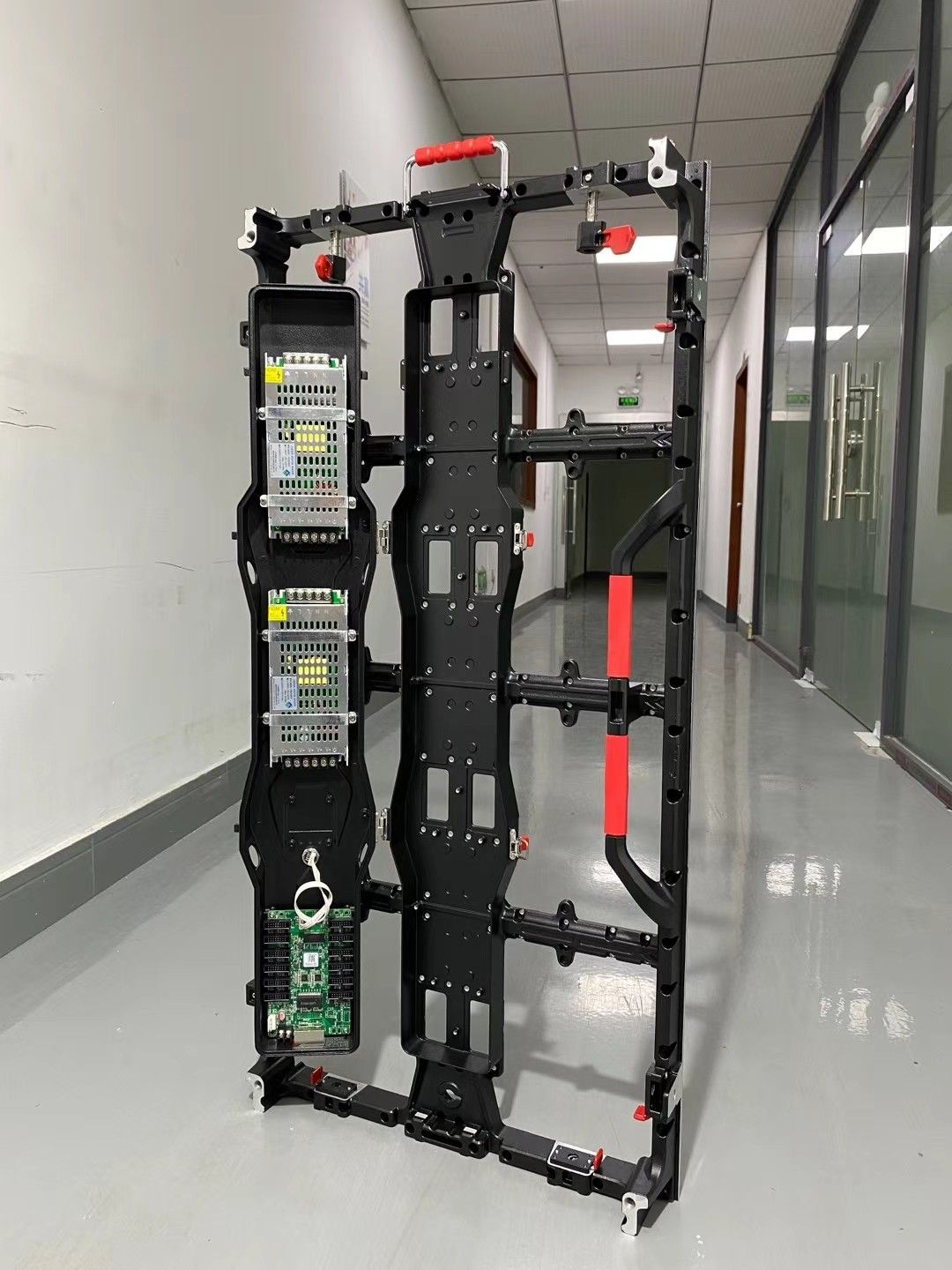

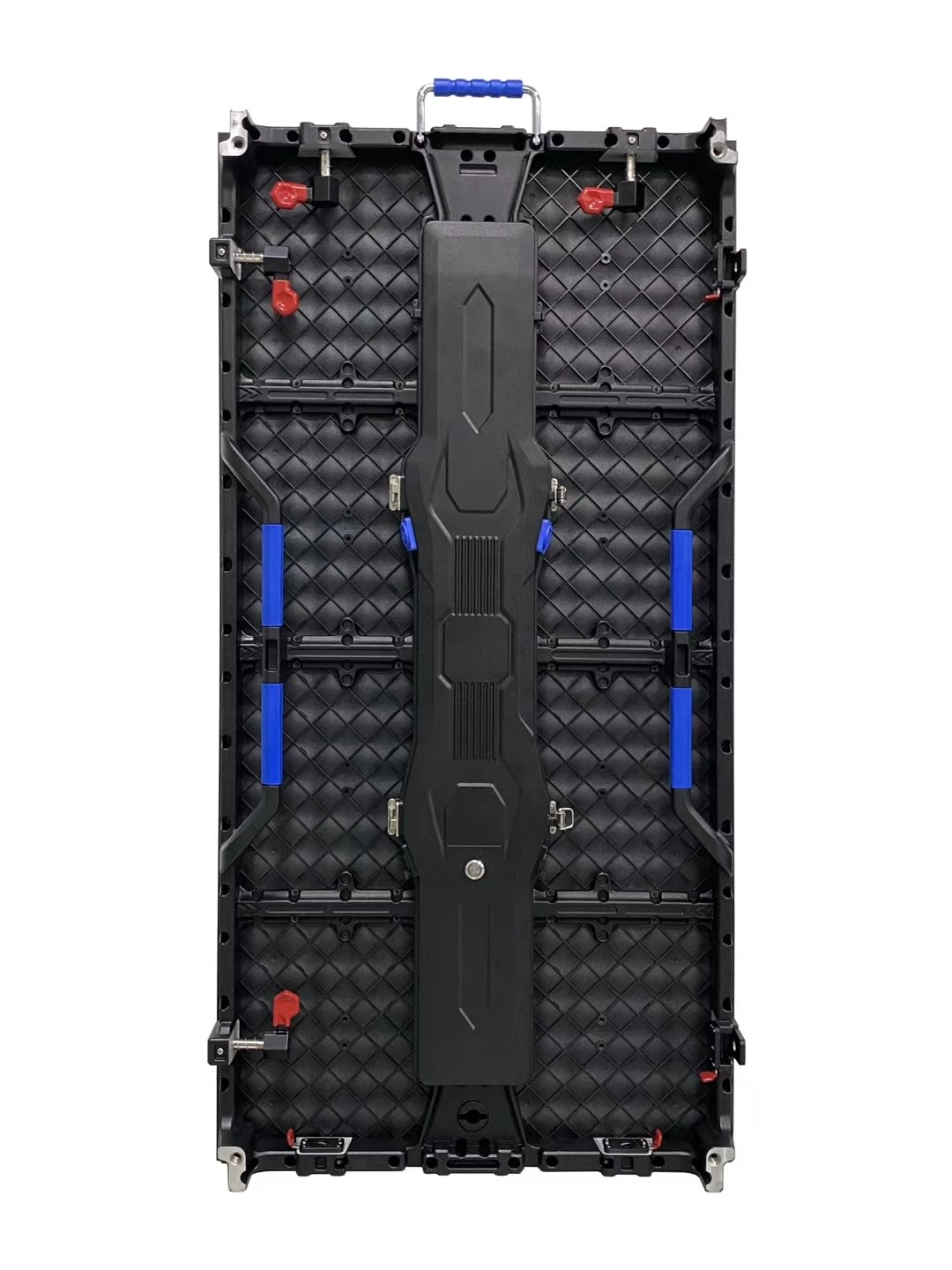

Advanced protective features safeguard LED modules, including anti-collision pin corners and waterproof
die-cast Magnalium cabinets. Fast locks ensure seamless assembly without gaps,
making them durable, reliable, and perfect for outdoor applications.
| INDOOR FLEXIBLE RENTAL SCREEN SPECIFICATION |
| Module Configuration | Model number | P1.9 | P2.6 | P2.9 | P3.91 | P4.81 |
| Module size | 250x250mm |
Pixel density (m2) | 289444 dots | 147456 dots | 112896 dots | 65536 dots | 43264 dots |
| Pixel | 1.86 | 2.604 | 2.976 | 3.91 | 4.81 |
| SMD | SMD1515 | SMD2020 | SMD2020 | SMD2121 | SMD2121 |
| Pixel resolution | 132x132 dots | 96x96 dots | 86x86 dots | 64x60 dots | 52x52 dots |
| Module thickness | 16mm |
| Module weight | 0.45kg | 0.43kg | 0.44kg | 0.45kg | 0.45kg |
| Drive type | Constant drive |
| Brightness | >1200cm/m2 |
| Cabinet | Cabinet size | 500x500mm / 500x1000mm |
| Power supply | 5V/40A 5V 60A |
| Best viewing distance | 1-40m | 2.5-40m | 3-50m | 4-50m | 5-50m |
| Best viewing angle | 140(W) / 140(H) |
| Temperature | -20 / +60 |
| Humidity | 10% - 75% |
| Power Supply | Working voltage | AC220V+-10% |
| Average power consumption | <300W/m2 |
| Max power consumption | <600W/m2 |
| Control System | Control method | synchronization |
| Parameter | Refresh | 1920Hz /3840hz |
| Frequency | 60Hz |
| Gray level | 65536 |
| OUTDOOR FLEXIBLE RENTAL SCREEN SPECIFICATION |
| Module Configuration | Model number | P2.6 | P2.9 | P3.91 | P4.81 |
| Module size | 250x250mm |
Pixel density | 147456 dots | 112896 dots | 65536 dots | 43264 dots |
| Pixel | 2.604 | 2.976 | 3.91 | 4.81 |
| SMD | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
| Pixel resolution | 96x96 dots | 84x84 dots | 64x64 dots | 52x52 dots |
| Module thickness | 16mm |
| Module weight | 0.45kg | 0.43kg | 0.44kg | 0.45kg |
| Drive type | Constant drive |
| Brightness | >850cm/m2 |
| Cabinet | Cabinet size | 500x500mm / 500x1000mm |
| Power supply | 5V/40A 5V 60A |
| Best viewing distance | 2.5-40m | 3-40m | 4-50m | 5-50m |
| Best viewing angle | 140(W) / 140(H) |
| Temperature | -20 / +60 |
| Humidity | 10% - 75% |
| Power Supply | Working voltage | AC220V+-10% |
| Average power consumption | <300W/m2 |
| Max power consumption | <800W/m2 |
| Control System | Control method | synchronization |
| Parameter | Refresh | 1920Hz /3840hz |
| Frequency | 60Hz |
| Gray level | 65536 |
