Flexible Rental LED Display Screen

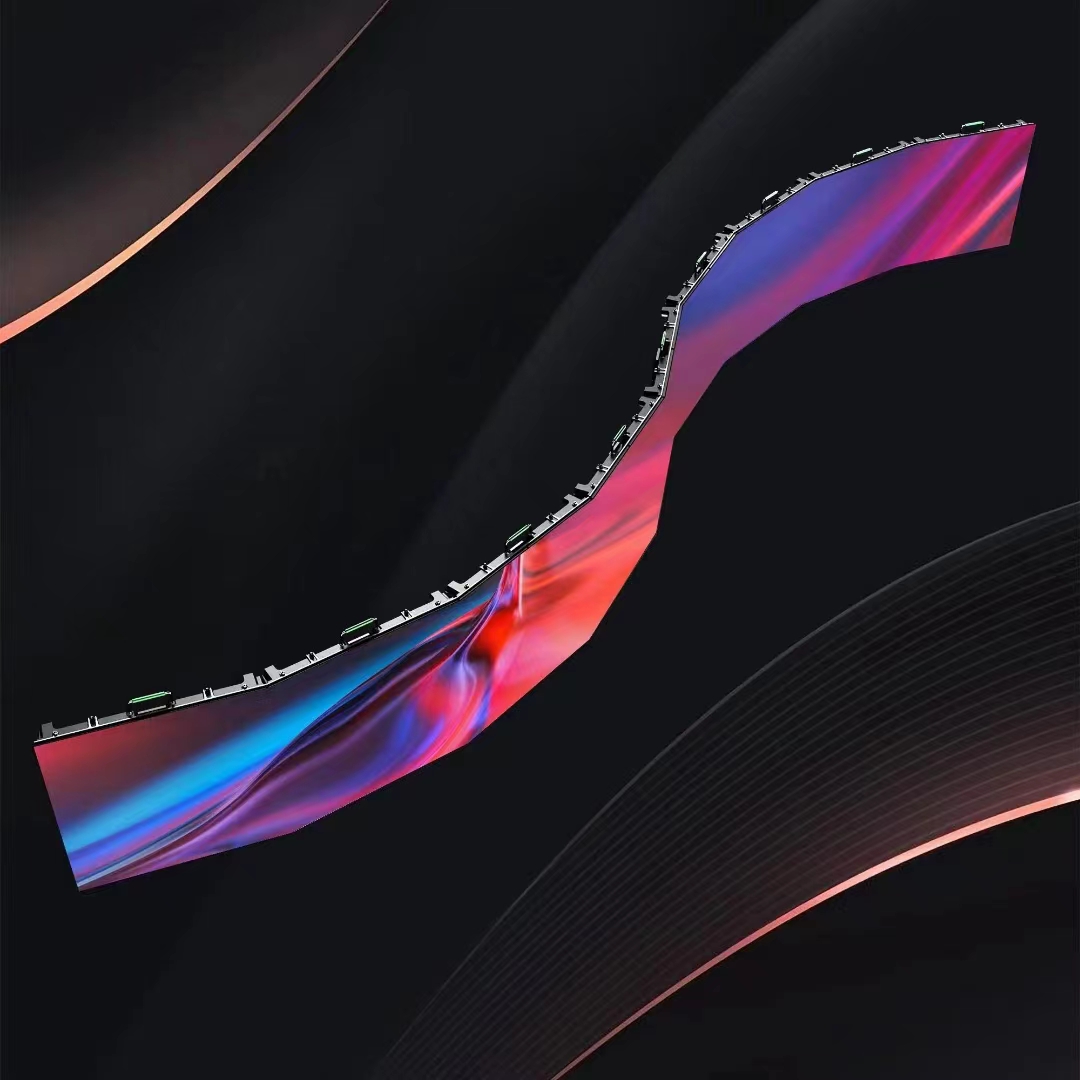

The Tentech TR flexible rental LED display screen panel, with its adjustable range of +45 to -45 degrees and multi-functional handle, surpasses traditional rental LED panels. Its innovative design allows for the effortless creation of extraordinary and unique stage setups, delivering captivating visual experiences for events and performances with ease.
The Tentech TR series curved rental LED display screen seamlessly integrates with both flat and curvable panels in a single setup. This innovative combination offers an optimized solution that reduces costs while delivering versatile and dynamic visual displays, making it an ideal choice for high-impact stage and event designs.

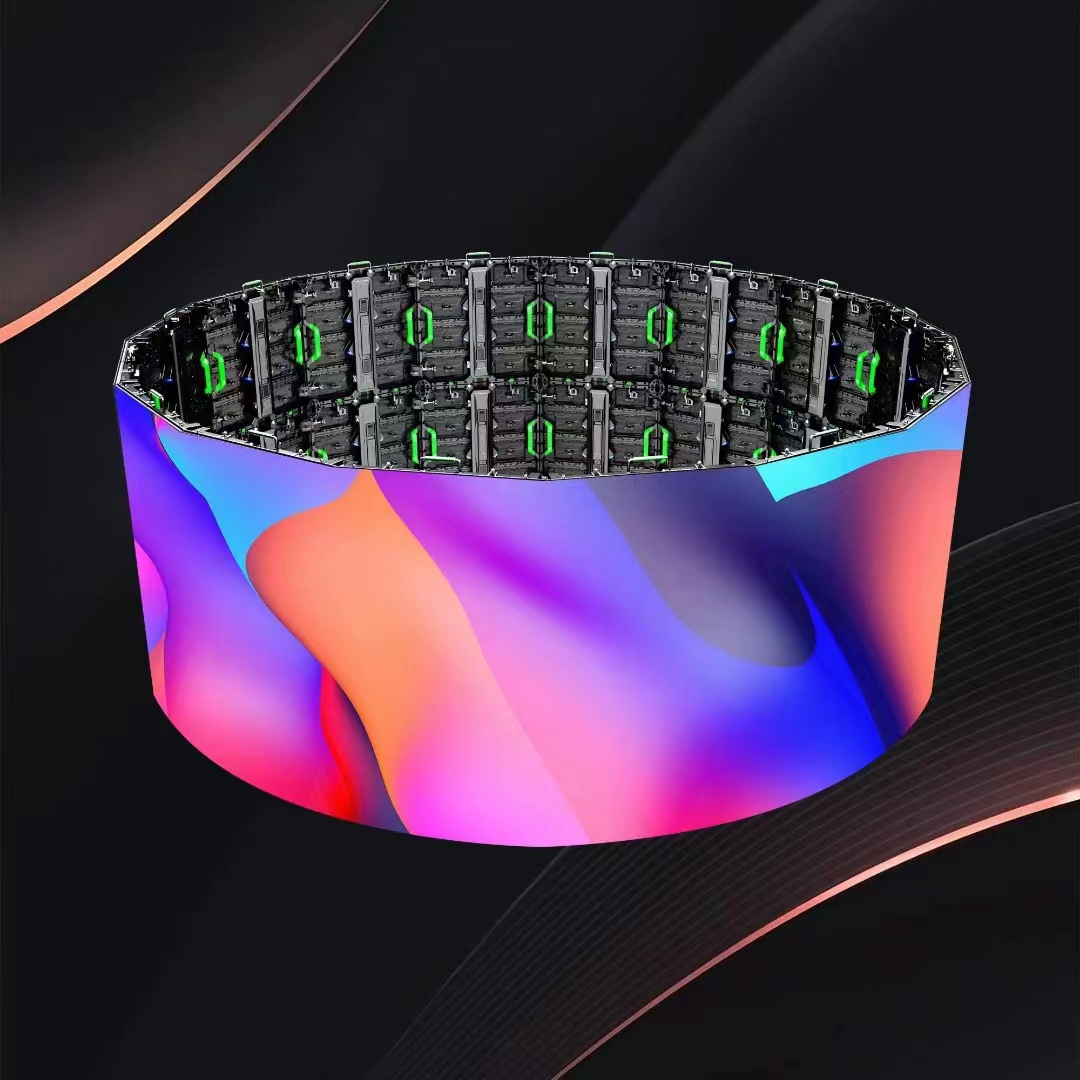

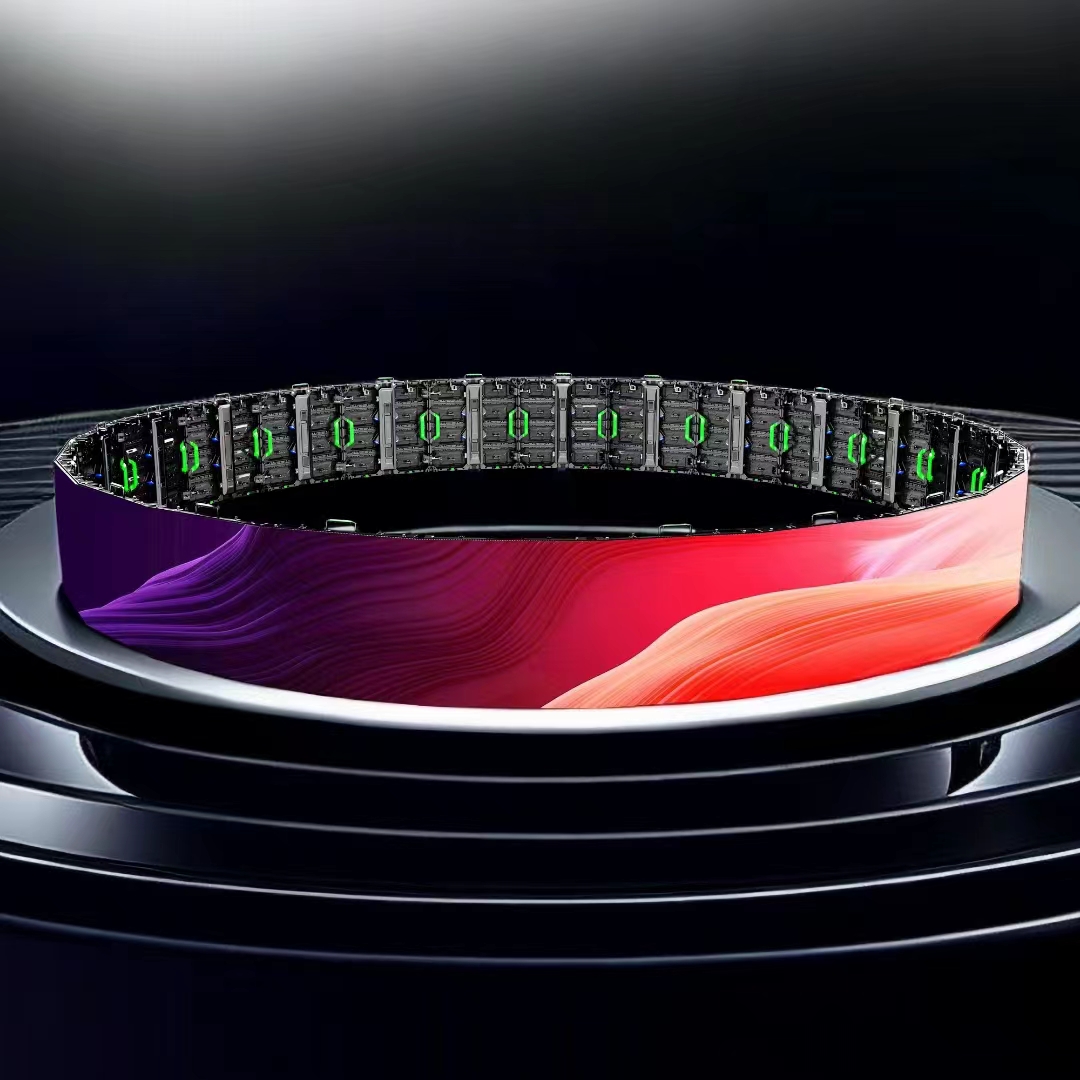

The Tentech TR series flexible rental LED display allows for the construction of an elegant, compact circle using just 8 panels, creating a diameter of 1.27m. This design is perfect for small venues, offering a visually appealing stage setup that maximizes space while delivering impressive, high-quality visual effects.
| INDOOR FLEXIBLE RENTAL SCREEN SPECIFICATION |
| Module Configuration | Model number | P1.9 | P2.6 | P2.9 | P3.91 | P4.81 |
| Module size | 250x250mm |
Pixel density (m2) | 289444 dots | 147456 dots | 112896 dots | 65536 dots | 43264 dots |
| Pixel | 1.86 | 2.604 | 2.976 | 3.91 | 4.81 |
| SMD | SMD1515 | SMD2020 | SMD2020 | SMD2121 | SMD2121 |
| Pixel resolution | 132x132 dots | 96x96 dots | 86x86 dots | 64x60 dots | 52x52 dots |
| Module thickness | 16mm |
| Module weight | 0.45kg | 0.43kg | 0.44kg | 0.45kg | 0.45kg |
| Drive type | Constant drive |
| Brightness | >1200cm/m2 |

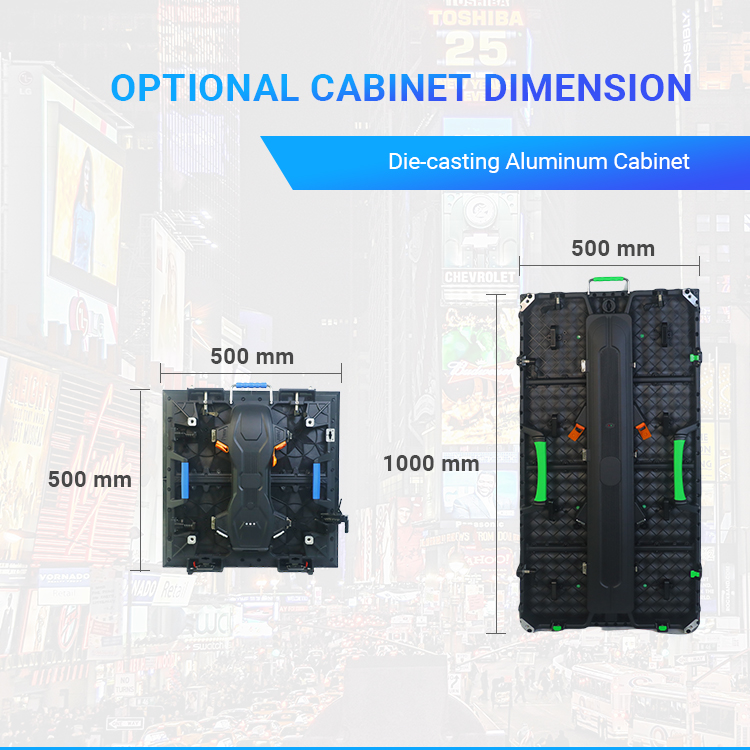

| Cabinet | Cabinet size | 500x500mm / 500x1000mm |
| Power supply | 5V/40A 5V 60A |
| Best viewing distance | 1-40m | 2.5-40m | 3-50m | 4-50m | 5-50m |
| Best viewing angle | 140(W) / 140(H) |
| Temperature | -20 / +60 |
| Humidity | 10% - 75% |
| Power Supply | Working voltage | AC220V+-10% |
| Average power consumption | <300W/m2 |
| Max power consumption | <600W/m2 |
| Control System | Control method | synchronization |
| Parameter | Refresh | 1920Hz /3840hz |
| Frequency | 60Hz |
| Gray level | 65536 |
| OUTDOOR FLEXIBLE RENTAL SCREEN SPECIFICATION |
| Module Configuration | Model number | P2.6 | P2.9 | P3.91 | P4.81 |
| Module size | 250x250mm |
Pixel density | 147456 dots | 112896 dots | 65536 dots | 43264 dots |
| Pixel | 2.604 | 2.976 | 3.91 | 4.81 |
| SMD | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
| Pixel resolution | 96x96 dots | 84x84 dots | 64x64 dots | 52x52 dots |
| Module thickness | 16mm |
| Module weight | 0.45kg | 0.43kg | 0.44kg | 0.45kg |
| Drive type | Constant drive |
| Brightness | >850cm/m2 |
| Cabinet | Cabinet size | 500x500mm / 500x1000mm |
| Power supply | 5V/40A 5V 60A |
| Best viewing distance | 2.5-40m | 3-40m | 4-50m | 5-50m |
| Best viewing angle | 140(W) / 140(H) |
| Temperature | -20 / +60 |
| Humidity | 10% - 75% |
| Power Supply | Working voltage | AC220V+-10% |
| Average power consumption | <300W/m2 |
| Max power consumption | <800W/m2 |
| Control System | Control method | synchronization |
| Parameter | Refresh | 1920Hz /3840hz |
| Frequency | 60Hz |
| Gray level | 65536 |
