Outdoor Rental LED Display
BLXTECH's outdoor rental LED screens, designed for diverse events, offer pixel pitches of P3.91, P4.81, P5, and P6.

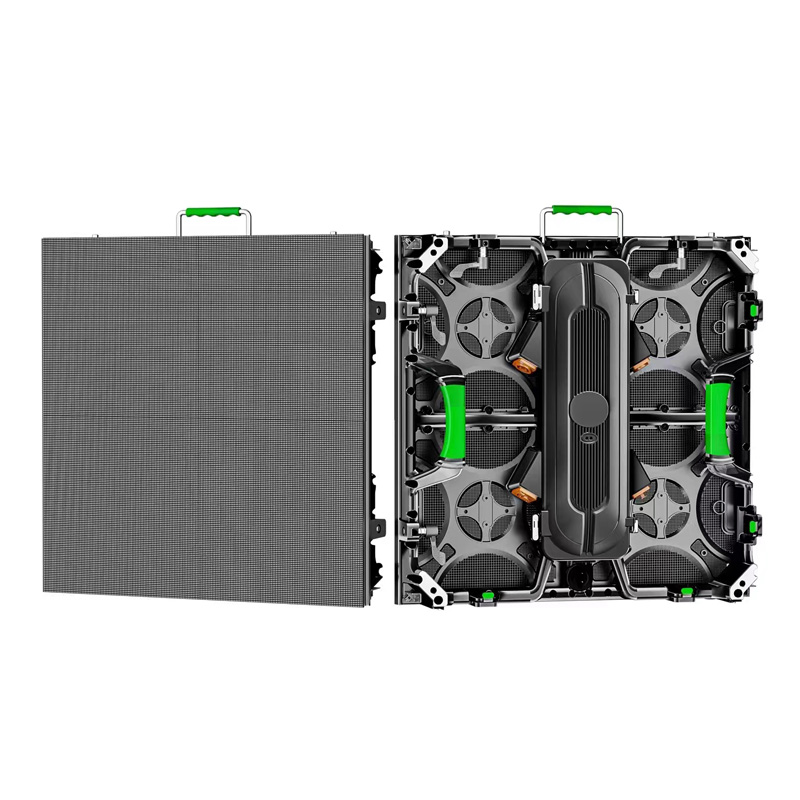

Advanced protective features safeguard LED modules, including anti-collision pin corners and waterproof
die-cast Magnalium cabinets. Fast locks ensure seamless assembly without gaps,
making them durable, reliable, and perfect for outdoor applications.
| INDOOR RENTAL SCREEN SPECIFICATION |
| Module Configuration | Model number | P2.604-32S | P2.976-28S | P3.91-16S | P4.81-13S |
| Module size | 250x250mm |
Pixel density | 147456 dots | 112896 dots | 65536 dots | 43264 dots |
| Pixel | 2.604 | 2.976 | 3.91 | 4.81 |
| SMD | SMD2020 |
| Pixel resolution | 96x96 dots | 84x84 dots | 64x64 dots | 52x52 dots |
| Module thickness | 16mm |
| Module weight | 0.45kg | 0.43kg | 0.44kg | 0.45kg |
| Drive type | Constant drive |
| Brightness | >850cm/m2 |
| Cabinet | Cabinet size | 500x500mm / 500x1000mm |
| Power supply | 5V/40A 5V 60A |
| Best viewing distance | 2.5-40m | 3-40m | 4-50m | 5-50m |
| Best viewing angle | 140(W) / 140(H) |
| Temperature | -20 / +60 |
| Humidity | 10% - 75% |
| Power Supply | Working voltage | AC220V+-10% |
| Average power consumption | <300W/m2 |
| Max power consumption | <600W/m2 |
| Control System | Control method | synchronization |
| Parameter | Refresh | 1920Hz /3840hz |
| Frequency | 60Hz |
| Gray level | 65536 |
| OUTDOOR RENTAL SCREEN SPECIFICATION |
| Module Configuration | Model number | P2.604-32S | P2.976-28S | P3.91-16S | P4.81-13S |
| Module size | 250x250mm |
Pixel density | 147456 dots | 112896 dots | 65536 dots | 43264 dots |
| Pixel | 2.604 | 2.976 | 3.91 | 4.81 |
| SMD | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
| Pixel resolution | 96x96 dots | 84x84 dots | 64x64 dots | 52x52 dots |
| Module thickness | 16mm |
| Module weight | 0.45kg | 0.43kg | 0.44kg | 0.45kg |
| Drive type | Constant drive |
| Brightness | >850cm/m2 |
| Cabinet | Cabinet size | 500x500mm / 500x1000mm |
| Power supply | 5V/40A 5V 60A |
| Best viewing distance | 2.5-40m | 3-40m | 4-50m | 5-50m |
| Best viewing angle | 140(W) / 140(H) |
| Temperature | -20 / +60 |
| Humidity | 10% - 75% |
| Power Supply | Working voltage | AC220V+-10% |
| Average power consumption | <300W/m2 |
| Max power consumption | <800W/m2 |
| Control System | Control method | synchronization |
| Parameter | Refresh | 1920Hz /3840hz |
| Frequency | 60Hz |
| Gray level | 65536 |
